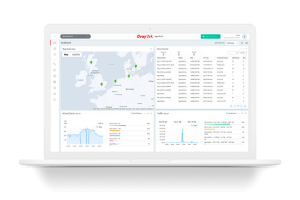

VigorACS 2

The centralized management software for configuring, monitoring, and managing DrayTek devices

VigorACS 2 is the centralized management software for all DrayTek devices. It is an integrated platform for configuration, monitoring, and maintenance for up to thousands devices from a single platform. The main features include Device Provisioning, Firmware Provisioning, VPN Wizard, Single Device Configuration, Scheduled Device Maintenance, AP Management, Report Generating, and Network Insight.

The TR-069 protocol-based VigorACS 2 provides the ability of remote management, and connections over the Internet are secured by HTTPS. It's the perfect solution for the enterprise with a large scale of DrayTek devices, or the System Integrator who need to provide a real-time service for their customer's DrayTek devices.

Version 2.4.1 Released on 2019-01-31 | View Release Note

Save time & money with VigorACS 2

Get an overview of what you can achieve with the software

Minimum Spec

Operating System: 64-bit Windows or Linux
CPU: Intel® i5 Processor with 2 Cores, 4 Threads, and 4M Caches
Memory: 2 GB RAM
Storage: 20 GB


Hardware Suggestion for More Nodes

  • Number of CPEs
  • 50
  • 500
  • 5,000
  • 10,000
  • 20,000
  • 30,000
  • Operating System
  • Windows / Linux
  • Windows / Linux
  • Linux
  • Linux;
  • Linux
  • Linux
  • CPU
  • Intel Core i7-7567U Processor (4M Cache, 3.50 GHz, Cores: 2, Threads: 4)
  • Intel Core i7-7700K Processor (8M Cache, 4.2 GHz , Cores: 4, Threads: 8)
    Intel Xeon Gold 5122 Processor (16.5M Cache, 3.60 GHz, Cores: 4, Threads: 8)
  • IntelR Core i7-8700K Processo (12M Cache, 3.70 GHz, Cores: 6, Threads: 12)
    IntelR Xeon Gold 6128 Processor(19.25M Cache, 3.40 GHz, Cores: 6, Threads: 12)
  • Intel Xeon Gold 6154 Processor(24.75M Cache, 3.00 GHz, Cores: 18, Threads: 36)
  • Intel Xeon Platinum 8168 Processor (33M Cache, 2.70 GHz , Cores: 24, Threads: 48)
  • Intel Xeon Platinum 8180 Processor (38.5M Cache, 2.50 GHz , Cores: 28, Threads: 56)
  • Memory
  • 3 GB

  • 4 GB



  • 8 GB



  • 14 GB

  • 20 GB

  • 30 GB




Estimating Storage Requirement

The requirement of storage can be calculated by the number of nodes and the features in use:

  • InfluxDB data for device information (required): 20 MB, per node (will be deleted after 3 years)
  • Syslog (optional): about 48 MB, per node, per day
  • Scheduled CFG backup for all Vigor Router except for Vigor2960 and Vigor3900 (optional): about 25 KB, per node
  • Scheduled CFG backup for Vigor2960 or Vigor3900 (optional): about 250 KB, per node

For example, managing 500 Vigor Router (no Vigor2960 nor Vigor3900) with Syslog and Scheduled Backup (backup daily and keep all the files) enabled for 1 month, the estimated external data size is

  • 1. InfluxDB data : 20 MB x 500 = 10 GB
  • 2. Syslog : 48 MB x 30 days x 500 nodes = 720 GB
  • 3. Schedule cfg backup = 25 KB x 30 x 500 = 375 MB
    → Total external usage for 1 month : 10 + 720 + 0.375 = 730.375 GB




Client Requirement

Operating System: Windows 7, Windows 8, Windows 10, Multiple Linux distribution (e.g., Ubuntu, OpenSUSE, CentOS)
Browser: Firefox, Chrome, Opera, Safari, IE, Edge

Routers


  • Vigor1000 (f/w 1.5.4.2 or later)
  • Vigor130 (f/w 3.8.2 or later
  • Vigor2120 Series (3.8.5 or later)
  • Vigor2130 (f/w 1.5.4.2 or later)
  • Vigor2132 Series (f/w 3.8.0 or later)
  • Vigor2133 Series (f/w 3.8.7 or later)
  • Vigor2710 (f/w 3.6.9 or later)
  • Vigor2760 Series (f/w 3.8.2.3 or later)
  • Vigor2762 Series (f/w 3.8.8 or later)
  • Vigor2830 Series (f/w 3.6.8.7 or later)
  • Vigor2830v2 Series (f/w 3.8.1.2 or later)
  • Vigor2832 Series (f/w 3.8.3.5 or later)
  • Vigor2850 (f/w 3.6.8.6 or later)
  • Vigor2860 Series (f/w 3.8.4.6 or later)
  • Vigor2860 LTE Series (f/w 3.8.4.6 or later)
  • Vigor2862 Series (f/w 3.8.7 or later)
  • Vigor2862 LTE Series (f/w 3.8.7 or later)
  • Vigor2912 Series (f/w 3.8.5 or later)
  • Vigor2920 (f/w 3.6.9 or later)
  • Vigor2925 Series (f/w 3.8.4.2 or later)
  • Vigor2925 TLE Series (f/w 3.8.4.2 or later)
  • Vigor2926 Series (f/w 3.8.7 or later)
  • Vigor2926 LTE Series (f/w 3.8.7 or later)
  • Vigor2952 Series (f/w 3.8.4.2 or later)
  • Vigor2960 (f/w 1.4.0 or later)
  • Vigor300B (f/w 1.4.0 or later)
  • Vigor3220 Series (f/w 3.8.4.1 or later)
  • Vigor3900 (f/w 1.4.0 or later)

Access Points


  • VigorAP 710 (f/w 1.2.3 or later)
  • VigorAP 810 (f/w 1.2.3 or later)
  • VigorAP 900 (f/w 1.2.3 or later)
  • VigorAP 902 (f/w 1.2.3 or later)
  • VigorAP 903 (f/w 1.3.1 or later)
  • VigorAP 910C (f/w 1.2.3 or later)

Switches


  • VigorSwitch P1280 (f/w 2.3.0 or later)
  • VigorSwitch G1280 (f/w 2.3.0 or later)
  • VigorSwitch P2280 (f/w 2.3.0 or later)
  • VigorSwitch G2280 (f/w 2.3.0 or later)
