Limit the IP which can access the management interfaces of the router

If there are multiple subnets on the router, Network Administrator may set up LAN-based or IP-based access control at system maintenance >> management to prevent un-authorized LAN clients from logging into the router and change the router's settings.

By default, router's management page is accessible to all the LAN client, to set up access control based on the LAN subnet, go to System Maintenance >> Management >> LAN Access Setup. Un-check the LAN subnets that are NOT allowed to access the router at Apply To Subnet.

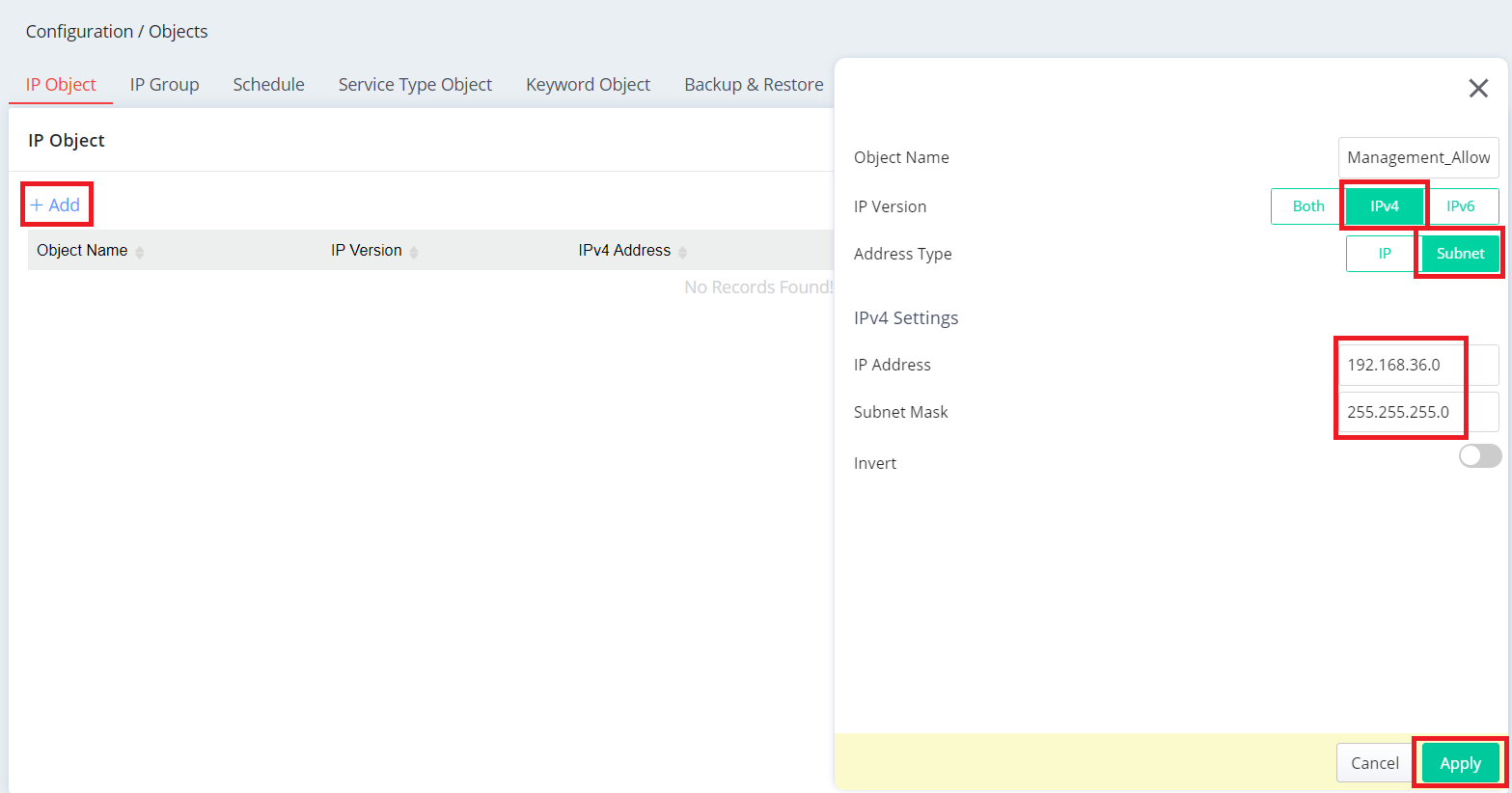

Or you can set up allow specific IP to access Management Web. Enter in IP object index number on LAN1, so that only IP object index number 1 of the LAN1 subnet could access Management Web. Note that the IP object could be a single IP or group IP.

Please note that if you disable Allow management form LAN then no LAN devices will be able to access the Management web, make sure users can access from the remote access.

To block the second subnet from the router's management page, go to System Maintenance >> Access Control >> LAN Access Control, un-select lan2 (the LAN profile that guests connected to) in "Apply to LAN Subnet", and then apply.

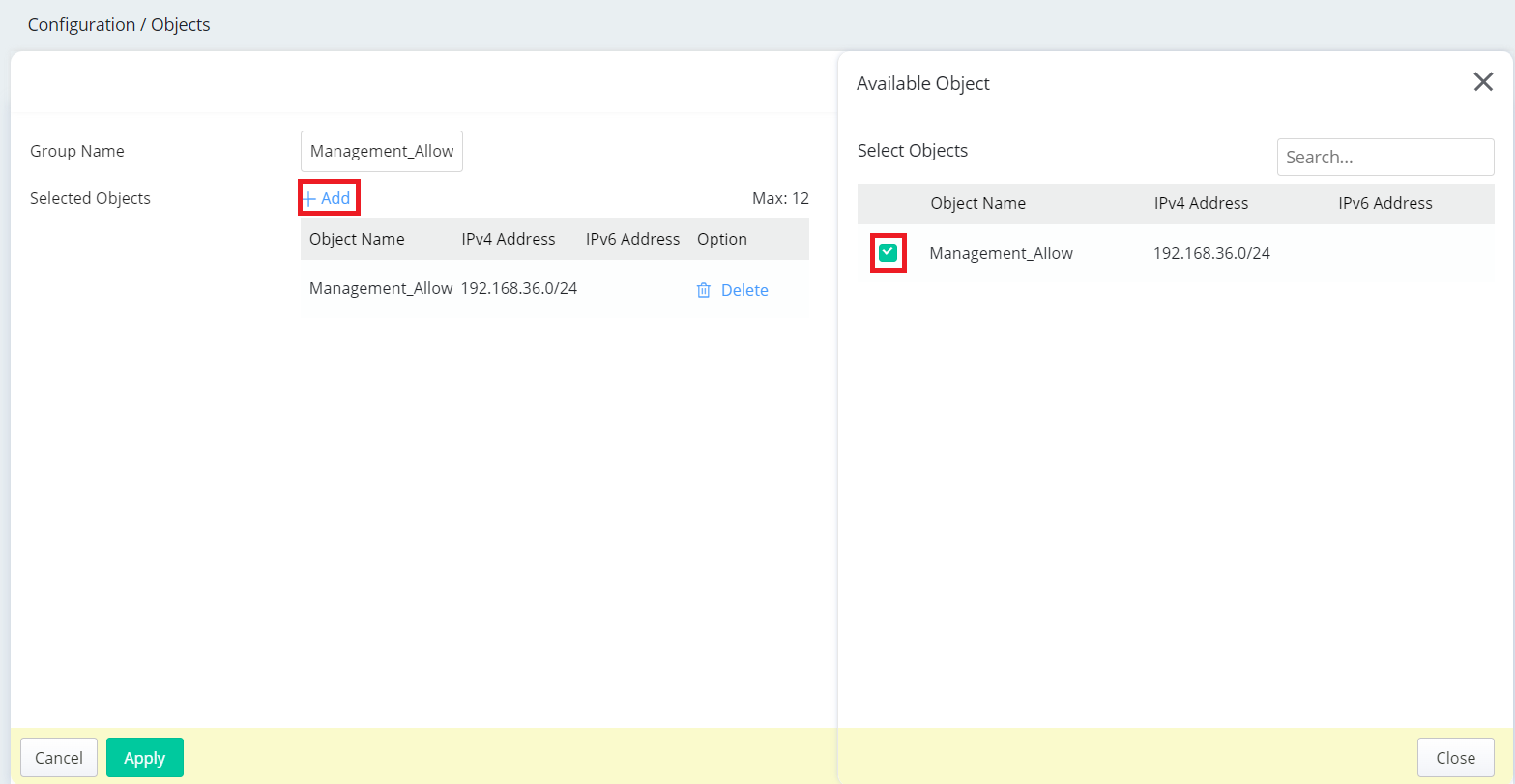

a screenshot of Vigor3900

Published On: 2013-11-08
