The DrayTek VigorSwitch PX2060 features 4 10-Gigabit Ethernet RJ45 LAN ports and 2 SFP+ 10Gbps fiber links. The built-in 802.3bt PoE capacity can deliver a total power budget of 140 watts (up to 60W per port), combined with PoE scheduling and priority monitoring features to ensure dependable operation of connected devices such as Wi-Fi 7 APs, IP cameras, and smart office equipment. With a 120Gbps switching capacity, it delivers true 10G connectivity for bandwidth-intensive networks.
Supporting advanced Layer 3 features, including seamless integration with Switch Management and VigorACS, the VigorSwitch PX2060 enables centralized control and streamlines deployment, making it an ideal managed switch for modern business networks.

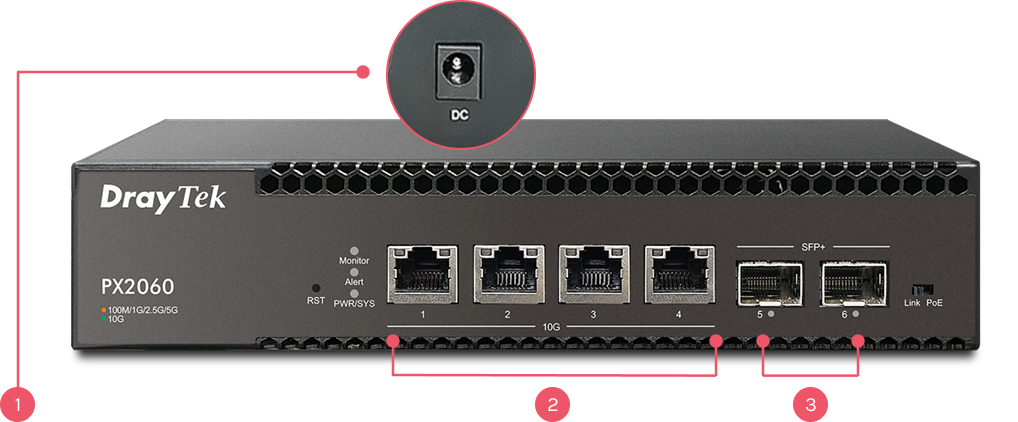

4x PoE+/PoE++
100M/1G/2.5G/5G/10G Ethernet, RJ-45
2x 10G SFP+
1000Mbps/10Gpbs fiber slot
140 watts
PoE Power Budget
120 Gbps
Switching Capacity
1Power Input
24x PoE+/PoE++ 10GbE RJ-45
32x SFP+ ports
Key Features
10GbE
Provides ultra-fast 10G connectivity to meet the needs of high-demand network.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
Link Aggregation
Supports up to 8 groups with static or LACP modes, enabling bandwidth scaling and traffic load balancing for high-performance networks.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch PX2060 to route the inter-VLAN traffic directly and offload the router.
Tag VLAN
Enables secure logical segmentation and simplifies deployment with automatic Voice / Surveillance VLAN (OUI Mode)
IPv6 Ready
VigorSwitch PX2060 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
LLDP-MED
Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic for smoother VoIP deployment.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Loop Detection
Automatically detects and blocks looping ports to prevent broadcast storms, ensuring continuous network stability.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Access Control
VigorSwitch PX2060 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

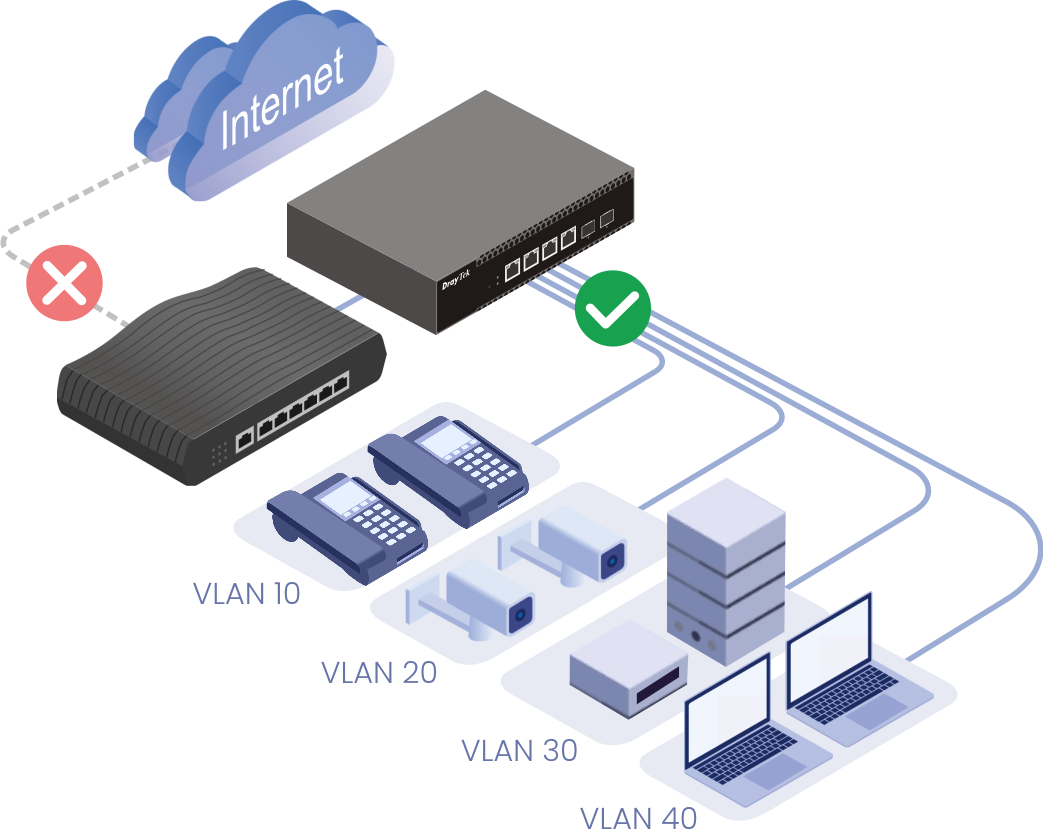

DHCP Server & VLAN Routing
Keep Your Network Running, Even Without a Router
Not all network traffic needs Internet access.
IP cameras, NVRs, PBX systems, file servers, and internal applications often communicate entirely within the local network.
With built-in DHCP Server and Layer 3 VLAN Routing, VigorSwitch PX2060 can continue managing local network communication even when the gateway router is offline.
By handling IP assignment and inter-VLAN routing directly at the switch layer, VigorSwitch PX2060 helps reduce router workload, improve LAN efficiency, and enhance network resilience.

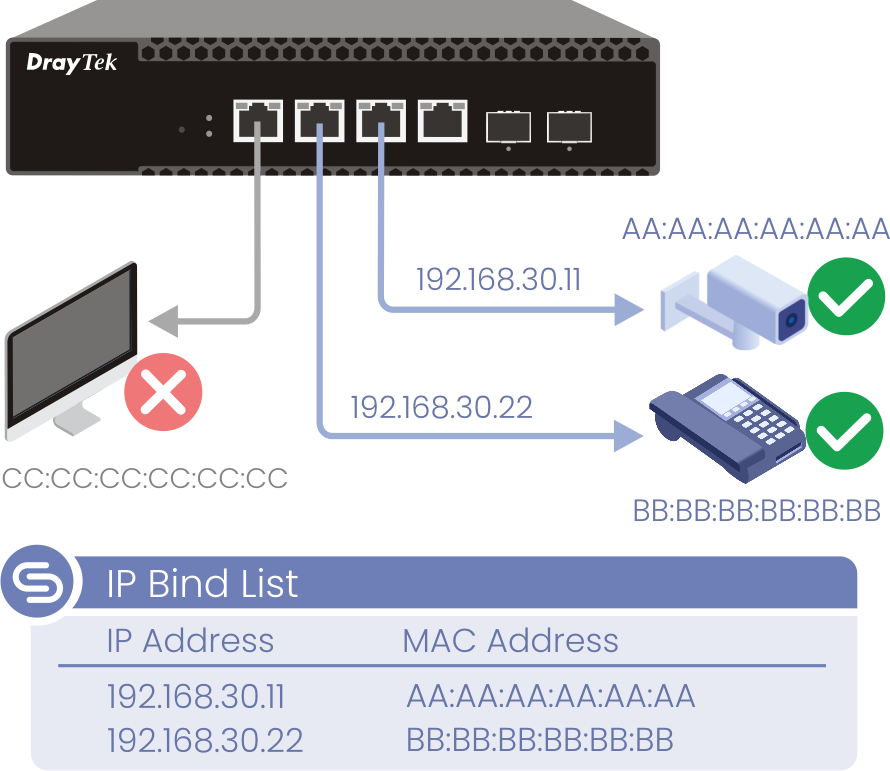

IP-MAC Binding
Ensure Every Device Uses the Right Identity
VigorSwitch PX2060 helps protect your network by binding IP addresses to specific MAC addresses.
Only authorized devices can use approved IP addresses, reducing the risk of IP spoofing, unauthorized access, and network conflicts.
Ideal for securing:
- IP Phones
- NAS Systems
- File Servers
- Surveillance Devices
- Management PCs
With IP-MAC Binding, VigorSwitch PX2060 improves network security while simplifying device management across the LAN.

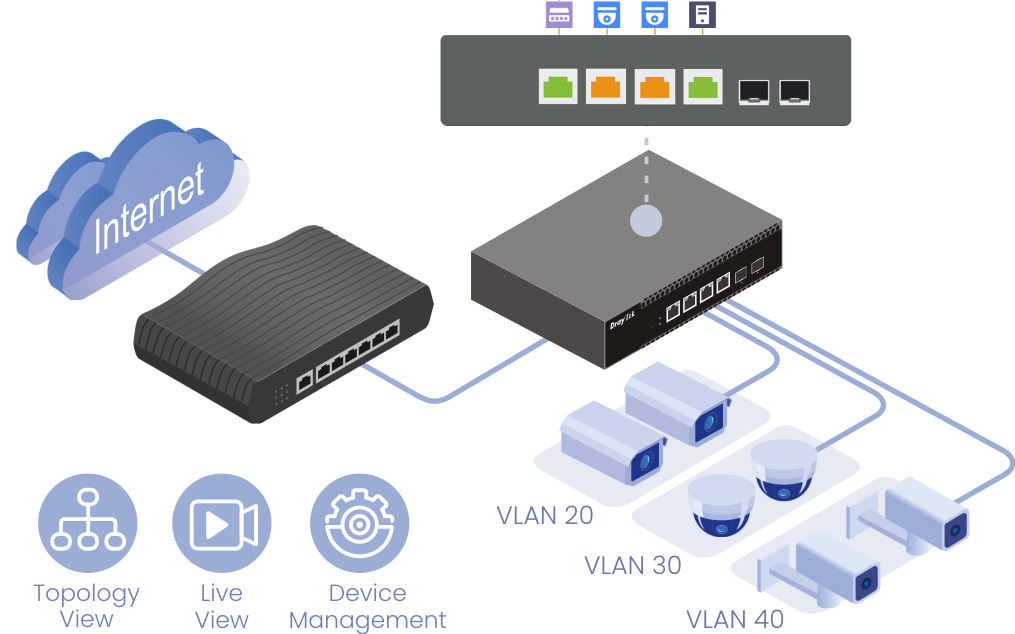

ONVIF-Friendly
Discover. Monitor. Manage.
Automatically detect ONVIF cameras and NVRs across VLANs.
Visualize surveillance topology, access live video streams, and manage devices from a centralized interface.
Feature Highlights
Visualize cameras and NVRs across VLANs
Monitor video streams directly
Manage ONVIF devices remotely
Key Benefits
- Auto Discovery
- Cross-VLAN Recognition
- Topology Visualization
- Live Streaming
- Remote Management
- Easy Maintenance
ONVIF Snapshot Alert
Monitor. Detect. Recover.
Automatically monitor ONVIF cameras and receive alerts when a camera becomes unavailable.
The latest snapshot helps identify the affected location quickly, while PoE auto recovery can help restore camera operation automatically.
Key Benefits
- Snapshot Alerts
- Camera Monitoring
- Auto Recovery
- Faster Response
- Reduced Downtime

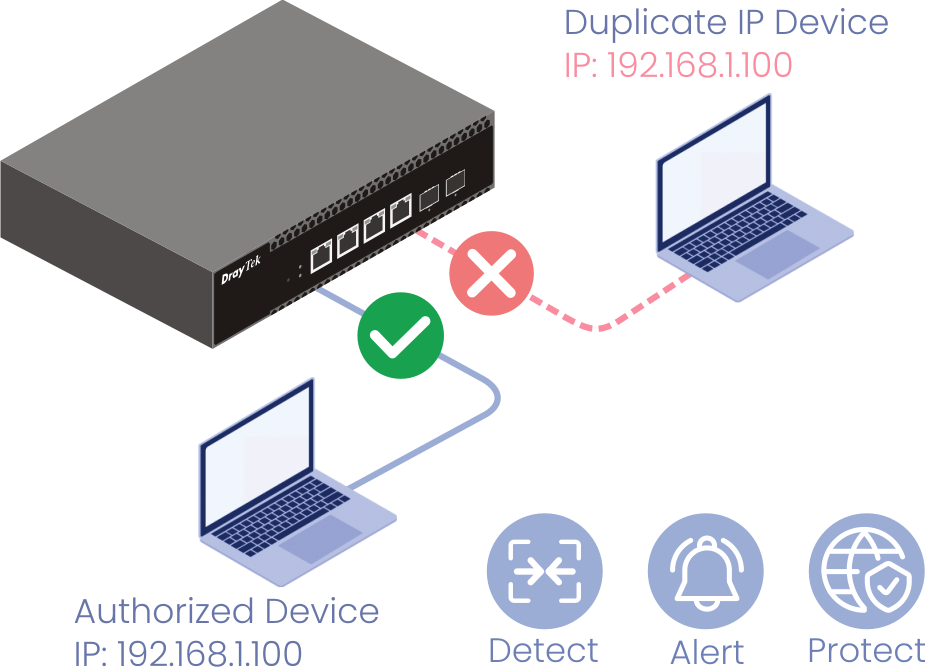

IP Conflict Detection & Prevention
Detect. Alert. Protect.
VigorSwitch PX2060 automatically identifies duplicate IP addresses and helps prevent network disruptions caused by misconfigured or unauthorized devices.
Maintain a more stable and reliable LAN with real-time conflict monitoring and protection.
Key Benefits
- Conflict Detection
- Real-Time Alerts
- Device Isolation
- Stable Network Operation
Device Check
Ping Check for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stops responding to the ping, PoE cycle a port (PoE model only) or send email alert.

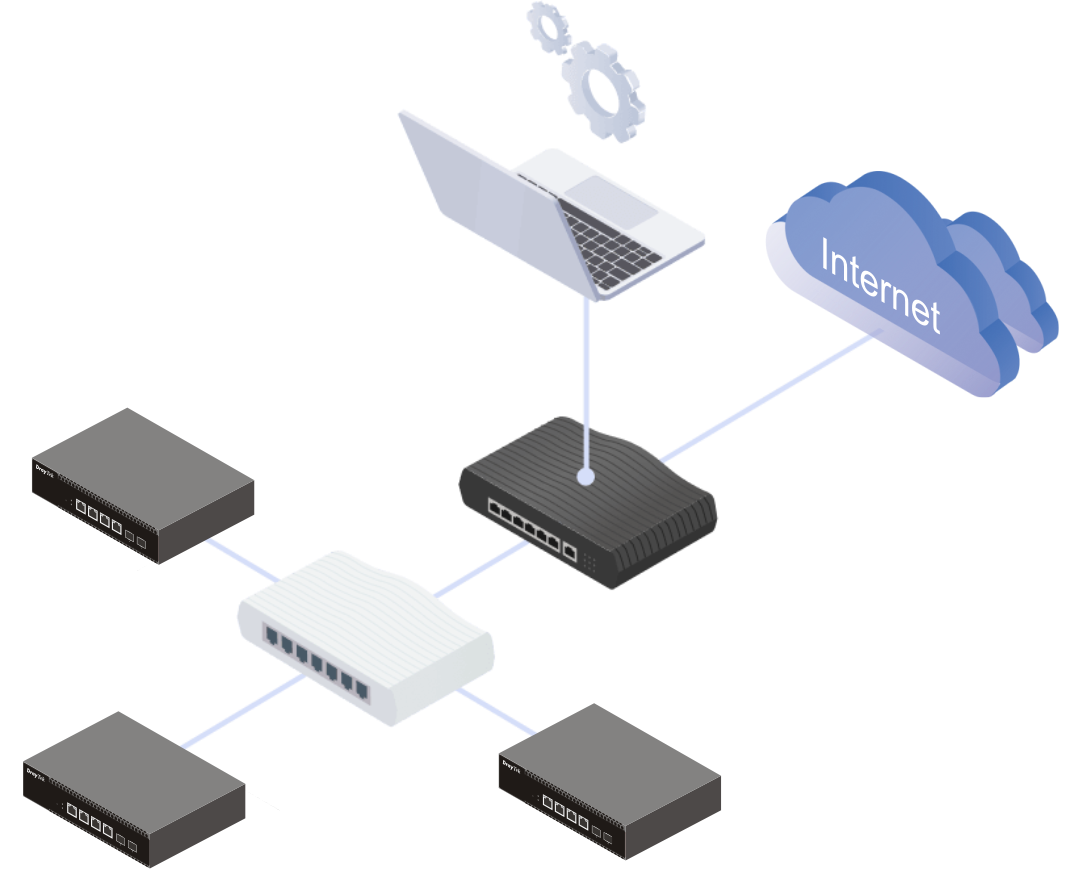

Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report

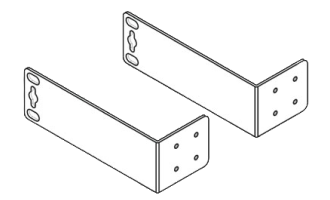

Long Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
