The DrayTek VigorSwitch P2542xh features 48 Gigabit Ethernet LAN ports and 6 SFP+ 10Gbps fiber links. The built-in PoE+ capacity can deliver a total power budget of 680 watts, combined with PoE scheduling and priority monitoring features to ensure dependentable operation of connected devices. The dual input of both DC and AC power offers enhenced flexibility for diverse deployment.
Supporting advanced Layer 3 features, including DHCP Server and VLAN outing, the VigorSwitch P2542xh enhances network efficiency and ensures your LAN continues to operate even when the gateway is offline, making it an ideal core switch for SMEs/SMBs.
48x PoE/PoE+
10/100/1000Mbps Ethernet, RJ-45
6x 10G SFP+
1000Mbps/10Gpbs fiber slot
680 watts
PoE Power Budget
216 Gbps
Switching Capacity
148x PoE/PoE+ Gigabit Ethernet
26x SFP+ Port
3Link/PoE LED Slide Switch
4Stack ID Indicator
5Stacking Button
62x DC Power Socket (backup usage)
7Console Port
8Power Socket
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2542xh to route the inter-VLAN traffic directly and offload the router.
IPv6 Ready
VigorSwitch P2542xh supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Access Control
VigorSwitch P2542xh supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
LLDP-MED
Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic for smoother VoIP deployment.
Stacking
Stacking lets multiple switches function as one, improving network management, scalability, and resilience.
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
Stacking Powers a Resilient Network
Imagine a network where multiple switches work as one-smart, synchronized, and ready for anything.
With the VigorSwitch P2542xh (Firmware v2.10.1 or later), that’s exactly what you get. By stacking up to 4 switches into a unified system, you create a strong, self-recovering network fabric that keeps your business connected, even when disruptions strike.
Here’s how it works:
- If one unit or link fails, traffic is instantly rerouted across the remaining switches-no service interruption, no manual intervention.
- The ring topology reinforces connectivity, offering a built-in safeguard against single points of failure.
- Single IP control means managing your stacked system is as simple as managing one device.
- One-click configuration sync and centralized firmware updates ensure consistency across your network.
- High-speed 10G SFP+ ports and a dedicated stacking button make setup fast and frictionless.
- Real-Time Monitoring displays the status and error codes of each unit in the stack, allowing for proactive issue resolution.
The VigorSwitch P2542xh makes your network stronger.
Stack smart. Stay connected.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Monitor. Detect. Recover.
Automatically monitor ONVIF cameras and receive alerts when a camera becomes unavailable.
The latest snapshot helps identify the affected location quickly, while PoE auto recovery can help restore camera operation automatically.
Key Benefits
- Snapshot Alerts
- Camera Monitoring
- Auto Recovery
- Faster Response
- Reduced Downtime
IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
Device Check
Ping Check for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stops responding to the ping, PoE cycle a port (PoE model only) or send email alert.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report

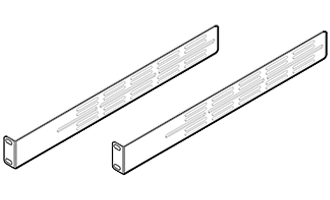

Rack Mount Kit
Extended Bracket Kit
Console Cable
Power Cord
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
