Powerful WiFi 6 Access Points for Better Network Efficiency
The VigorAP 905 is a dual-band WiFi 6 Access Point, offering link rate of 600 Mbps in 2.4GHz and 2400 Mbps in 5GHz. With support up to 256 concurrent clients and powerful mesh network, it provides excellent and reliable wireless connectivity, making it the perfect solution for high-speed and high-density environments.
Dual-Band
Concurrent 5GHz and 2.4GHz
AX3000
600Mbps in 2.4GHz and 2.4Gbps in 5GHz
1x 2.5G LAN
High-speed Internet
256 Users
2.4GHz & 5GHz shared concurrently
Interface
1WiFi Antenna
2LED Indicator
3DC Power Input
4Power ON/OFF Button
5WPS Button
6Factory Reset Button
7LAN: 1x 2.5G/1G/100M/10M RJ-45 (Blue)
PoE-PD Support
8LAN: 4x 1G/100M/10M RJ-45 (Yellow)
91x USB 2.0
Key Features
Wi-Fi 6
Feature OFDMA and MU-MIMO technology to improve Wi-Fi efficiency and deliver higher wireless speed.
Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more
Mesh
Easily link to other VigorAP to expand the wireless network. Learn more
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more
Multiple SSIDs
Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how
Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won't slow everyone down. Learn more
Virtual AP Controller
All-in-one management platform for VigorAP 905 to maintain and monitor the VigorAPs.
What's New in DrayOS 5-based VigorAP 905
Notification Service
DrayOS 5 now supports push notifications for the VigorAP 905 and other DrayOS 5 Access Points. With the DrayTek Wireless App (version 1.3.3 or later), network administrators can receive instant notifications for key events such as client disconnections, mesh node offline status, and login attempts. This feature makes it easy for admins to stay updated on wireless network events directly from their mobile devices.
MAC Filtering for Access Control Lists
To bolster network security, DrayOS 5 introduces MAC Filtering for Access Control. This feature allows administrators to control which devices can connect to the network by adding their MAC addresses to a profile. To enable and configure MAC Filtering, follow these steps:
- Go to Security >> MAC Filtering Profile to create a new profile.
- Add device names and corresponding MAC addresses.
- Apply the MAC Filtering settings to the SSID configuration under Configuration >> Wireless LAN to manage access control.
Streamlined Wireless LAN Configuration
In DrayOS 5, the process of setting up wireless network parameters has been simplified. Unlike DrayOS 4, where configurations for SSID, Radio Settings, Roaming, and other options had to be adjusted across multiple pages, DrayOS 5 consolidates all wireless settings into one easy-to-manage page. Administrators can now configure everything from Configuration >> Wireless LAN, providing a more seamless setup experience.
Comprehensive Client Monitoring
With DrayOS 5, monitoring the status of wireless clients has become more efficient. In previous versions, client information was split between the 2.4GHz and 5GHz settings. Now, all client details can be accessed on a single page under Monitoring >> Clients List, which provides a complete overview of client connections and usage. This enhancement makes it easier to manage and track network clients in one unified location.
WiFi 6 Capacity
OFDMA (Orthogonal Frequency Division Multiple Access) is a key characteristic of the Wi-Fi 6 certification program. Included in the Wi-Fi 6 standard, OFDMA relies on efficient scheduling techniques to function effectively in congested and complex network environments. As Wi-Fi 6 gains traction among manufacturers and the broader industry, it becomes crucial to analyze and document the potential benefits of successful OFDMA implementation and the ability to measure its impact.
OFDM
OFDMA
MU-MIMO is similar to multiple trucks serving users simultaneously. It increases capacity and results in higher speed per users.
BSS Coloring is a technique used to improve co-existence of overlapping BSSs and to allow spatial reuse within one channel .Simply say BSS coloring helps in mitigating problem of co-channel interference found in legacy Wi-Fi networks.
TWT (Target wake time ) ensures that end devices spend more time in standby while sending and receiving data more economically. This reduces energy consumption and increases overall efficiency within the home network. It allows an AP to manage activity in the Wi-Fi network, in order to minimize medium contention between Stations (STAs), and to reduce the required amount of time that an STA in the power-save mode needs to be awake.
WPA3 (Wi-Fi Protected Access 3) enhances the security of Wi-Fi networks by addressing vulnerabilities in previous standards (like WPA2) and introducing new features to protect modern wireless communications better. WPA3 was introduced in 2018 to provide stronger authentication, better encryption, and improved defenses against attacks such as brute-force password guessing and man-in-the-middle exploits.
DrayTek's Wi-Fi 6 encryption:
- WEP (64 / 128-bit)
- WPA / WPA2 / WPA3 / OWE
And you may check below comparison table to see WPA3's strength is obviously an surplus development in WLAN security design.
| WEP | WPA | WPA2 | WPA3 | |
|---|---|---|---|---|
| Encryption | RC4 | TKIP / RC4 | AES-CCMP | AES-CCMP / AES-GCMP |
| Session Key | 64/128 bit | 128 bit | 128 bit | 128/256 bit |
| Authentication | Open system, shared key | Pre-shared key | Pre-shared key | AES-CCMP / AES-GCMP |
| Level of Security | Very low | Low | Moderate | High |
Flexible LAN Deployment
The VigorAP 905 features 1×2.5GbE and 4×1GbE LAN ports, providing a balanced mix of high-speed and standard Ethernet connections. This configuration allows for flexible LAN deployments tailored to both high-bandwidth devices and everyday network clients. Whether in a business, retail, or home environment, the VigorAP 905 ensures stable, wired connectivity across various use cases.
Clinic
In clinics, the VigorAP 905 connects essential devices like the Vigor2136, NAS, IP phone, IP camera, and auto registration machine, using its LAN ports to ensure secure storage, voice communication, and surveillance.
Coffee Shop
For coffee shops, the VigorAP 905 links to the Vigor2136, PoS terminals, IP phone, IP camera, and self-ordering kiosk, providing stable wired connections to support business operations and customer-facing systems.
Home
In home networks, the VigorAP 905 connects the Vigor2136, NAS, IP camera, gaming console, and Smart TV, leveraging the 2.5GbE port for high-bandwidth devices like gaming or streaming, while keeping smart home gear reliably online.

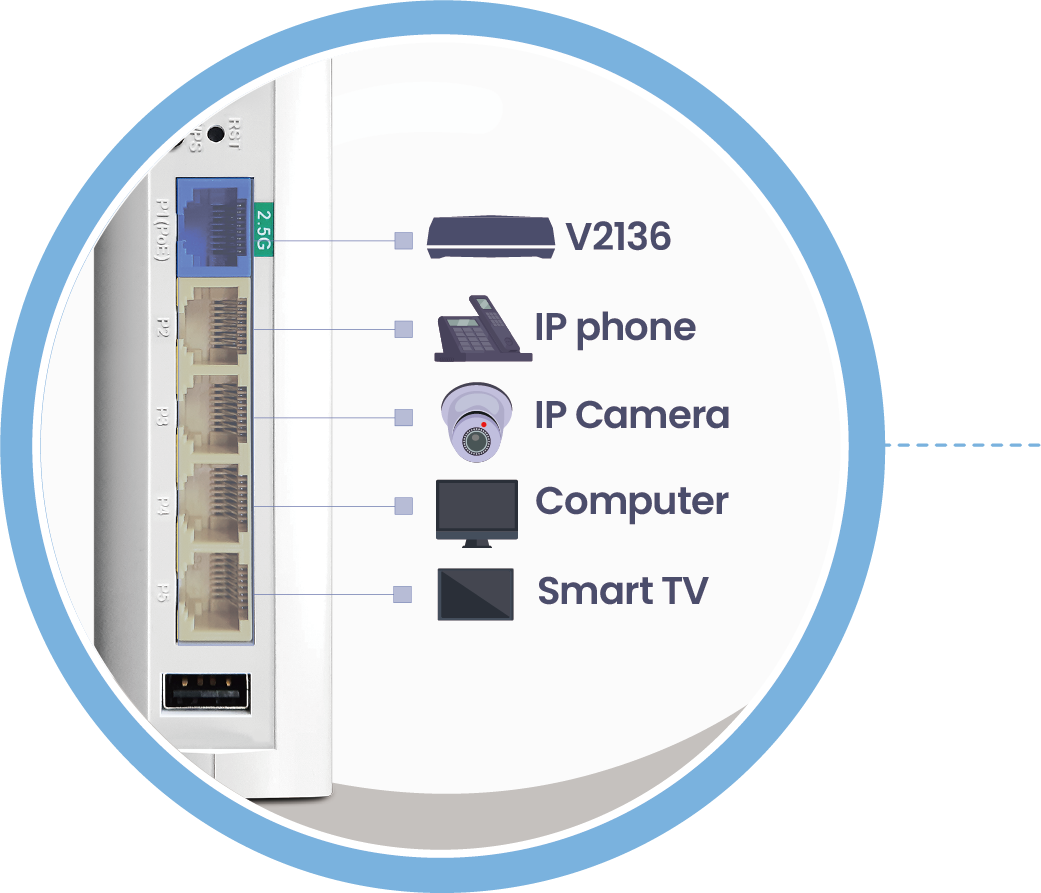

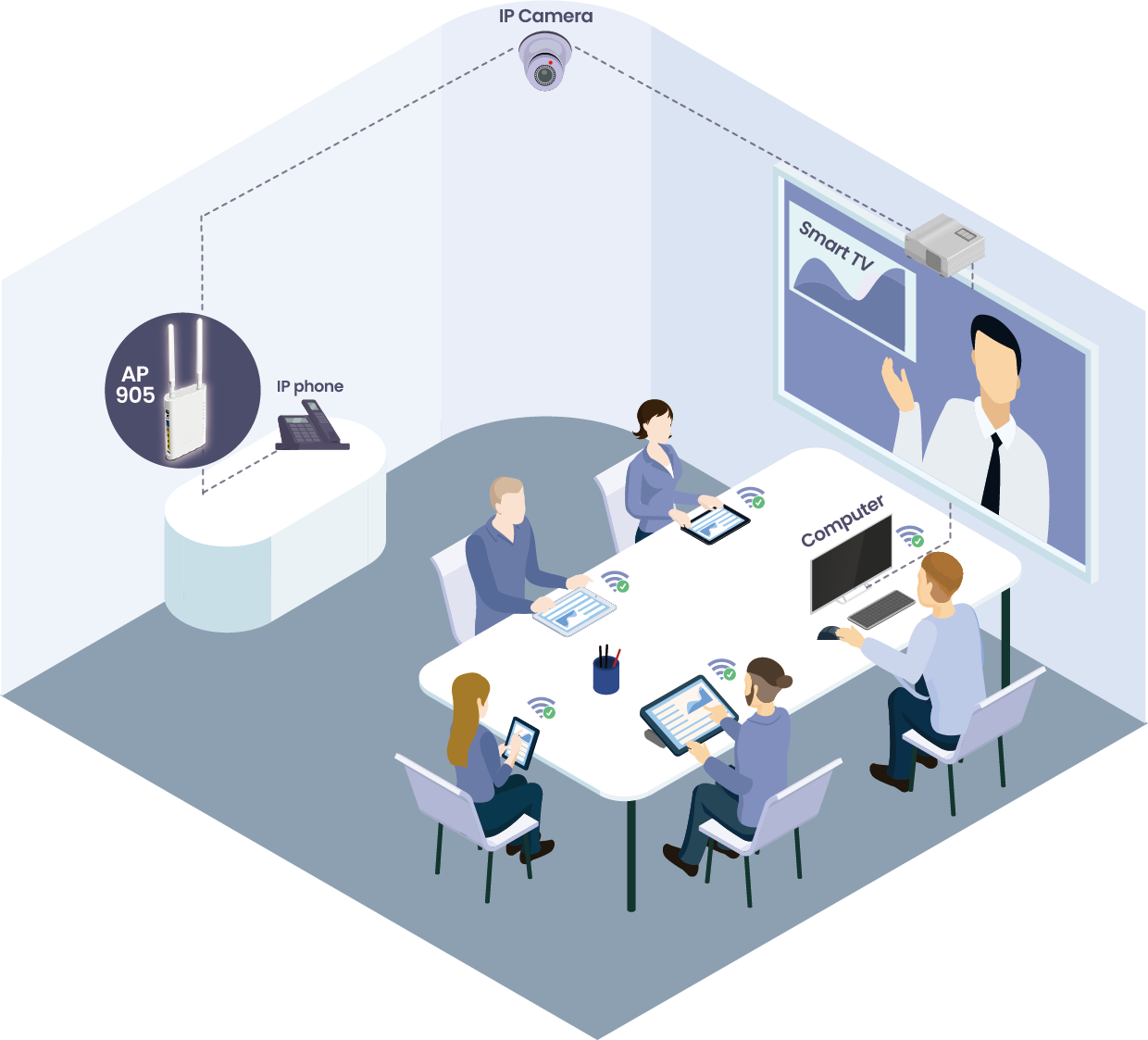

Meeting Room
Within a meeting room, the VigorAP 905 supports devices like the Vigor2136, computer, IP phone, IP camera, and Smart TV, enabling seamless presentations, video conferencing, and communication with dependable wired connections.
Seamless Wi-Fi Roaming
Fast & Smooth Handover
- Switch between access points seamlessly with intelligent roaming support.
- Supports Over-the-DS (via wired backbone) and Over-the-Air handoffs for reliable connectivity during video calls, voice chats, and real-time applications.
Smarter Assisted Roaming
- Signal thresholds and AP steering help devices move to stronger APs and balance network loads.
- Enjoy stable performance across all devices, everywhere.
Always Optimized for Business
- From offices to campuses, seamless roaming ensures uninterrupted mobility.
- Reliable coverage built for the demands of modern workplaces.
WiFi Roaming
WiFi roaming is essential in environments with multiple APs to ensure consistent and reliable wireless connectivity. It enhances the wireless experience by addressing the sticky client issue and ensuring smooth WiFi roaming.
Roaming Protocol
The VigorAP 905 supports advanced roaming protocols, including 802.11r, 802.11v, and 802.11k. These protocols allow WiFi clients to seamlessly switch to an AP or router with a stronger signal as they move within a network with multiple APs or routers. Clients compatible with these roaming protocols benefit from proactive and uninterrupted roaming.
Assisted Roaming
The "Minimum RSSI with Adjacent AP" feature in the VigorAP ensures clients are disconnected only when a nearby AP or router offers a stronger signal. This prevents unnecessary disconnections and keeps clients connected to the most optimal access point.
Management Solution
Wireless Virtual Controller
Intelligent Auto-Configuration
When connecting to the VigorAP 1062C, this feature automatically detects whether the access point (AP) is wired or wireless and determines the most suitable network topology. For smaller managed deployments with fewer than 8 APs, it functions as the Root AP to enable Mesh mode, managing up to 7 Node APs. For larger managed deployments with up to 20 APs, it activates AP management mode, providing enhanced control and scalability.
Wireless Device Monitoring
The intuitive panel provides a comprehensive overview of your network, allowing you to monitor devices, mesh statuses, and nearby APs effortlessly. It provides detailed insights, including WLAN clients, MAC and IP addresses, connection statuses, SSIDs for each radio, the number of connected clients, and irmware versions—all accessible on a single page. Even offline APs are easily identifiable, simplifying network management and optimization.
Zero Touch Deployment
Once a Node AP is auto-detected and added to the management group, the Root AP automatically provisions all necessary configurations to the Node APs, streamlining the setup process.
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report
VigorConnect
- AP/Switch Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch Maintenance
- Scheduled Maintenance
DrayTek Wireless APP
- Build Wireless Network
- Monitoring
- Parental Control & Client Management
- Mesh WiFi Setup
- Check signal strength and speed test
- Scheduled Maintenance
In the box
RJ-45 Cable (Ethernet)
Antenna x 2
Power Adapter
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
