Add a Separate Wireless Network for Guests

Published On: Nov 16, 2018

This article demonstrates how to set up a separate Wi-Fi network for guests so that you can isolate the visitors from your private network while providing them Wi-Fi service. It requires deploying VLANs on your local network, enabling a second SSID on the wireless AP and linking it to the guest's VLAN.

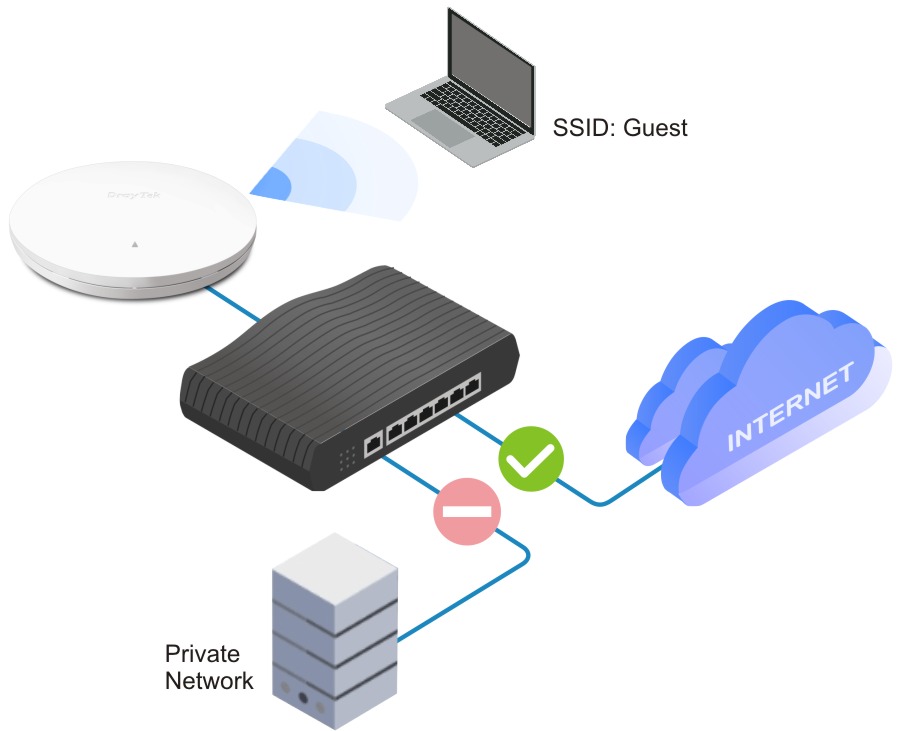

network topology
The Configuration of the Router

1. Go to LAN >> VLAN, check Enable, and configure the VLAN as follows:
- VLAN 0 is for the main network:

  • Include all the LAN ports,
  • use the default Subnet,
  • leave VLAN tag disabled,

- VLAN 1 for the guest network:

  • Include the LAN port which AP is going to connect
  • Include SSID 2 if your router has Wi-Fi built-in
  • select "LAN 2" for Subnet,
  • enable VLAN Tag, and enter a number for VID.
a screenshot of DrayOS

2. Go to LAN >> General Setup, check "Enable" for LAN 2. You may edit the IP range in Details Page.

a screenshot of DrayOS

3. (Optional) If your router has built-in Wi-Fi, go to Wireless LAN >> General Setup to enable SSID 2.

a screenshot of DrayOS

And set up the password for the guest Wi-Fi at Wireless LAN >>Security a screenshot of DrayOS

The Configuration of the AP

4. Go to Wireless LAN >> General Setup, enable for a second SSID, customize the SSID, and enter the VLAN ID as the same number as we use in LAN profile settings.

a screenshot of VigorAP 902

5. Set up a password for the Guest SSID at Wireless LAN >> Security.

a screenshot of VigorAP 902
Verify the Configuration

Connect the AP to the router. Now, clients connecting to the guest SSID should get an IP in the range in the new LAN profile.

a screenshot of Windows IP configuration

And they should not be able to ping a host on the main network.

a screenshot of ping failed
The Configuration of the Router

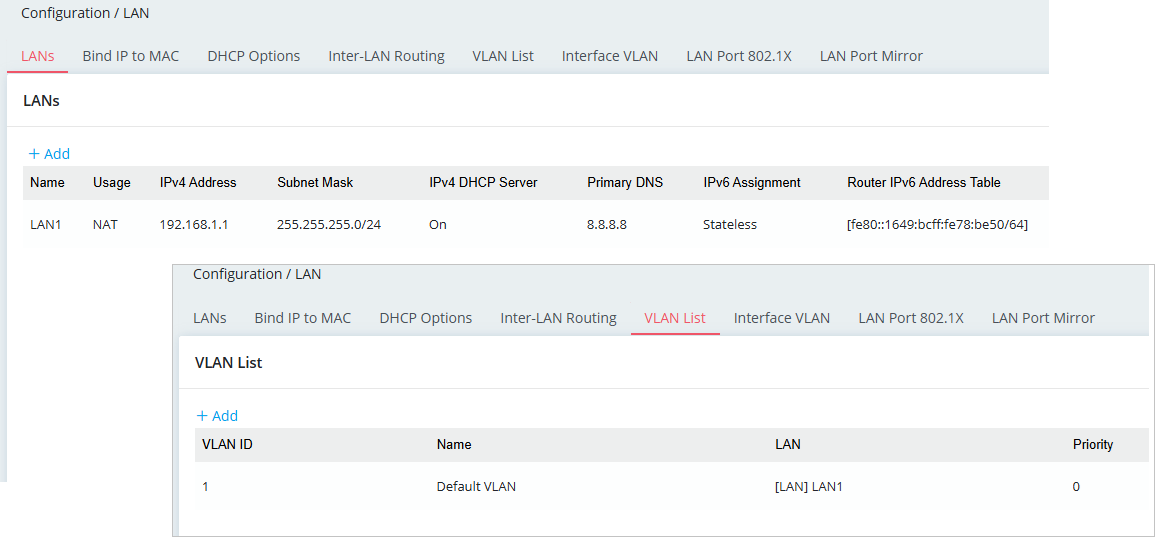

1. Go to LAN >> General Setup to add a new LAN profile for guests.

a screenshot of Vigor3900

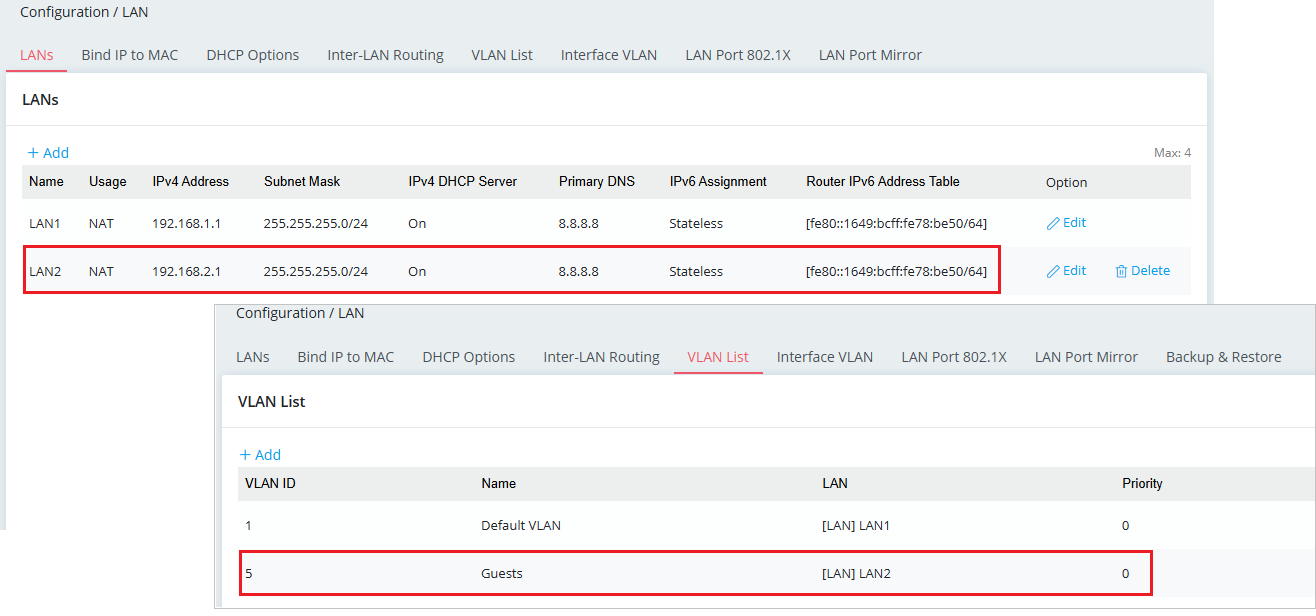

2. Set up the LAN profile as follows:

  • Enter the profile name
  • Check Enable
  • Enter a number for VLAN ID
  • Set up the IP Address and Subnet Mask
  • Select "Enable" for DHCP Server and enter the IP range for guests at DHCP Start IP and DHCP End IP
  • Click Apply to save the profile
a screenshot of Vigor3900

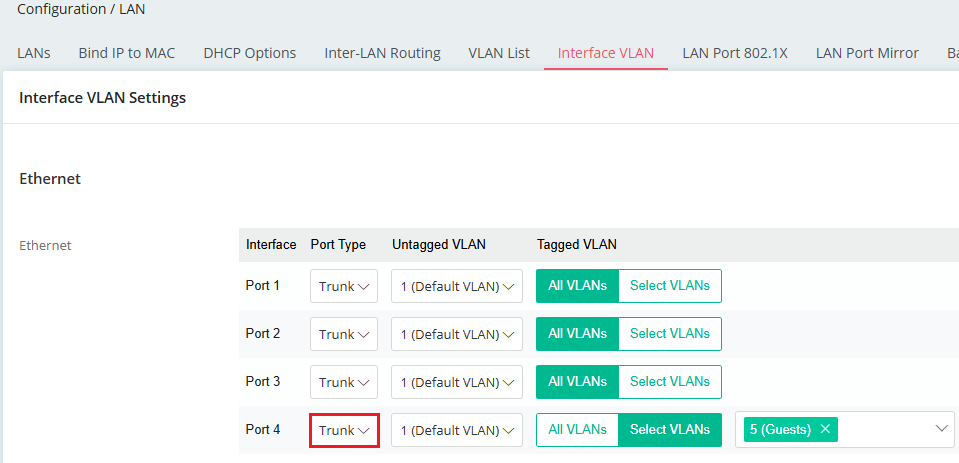

3. Go to LAN >> Switch to add a VLAN for guests.

a screenshot of Vigor3900

4. Enter VLAN ID as the same number as in the LAN profile, add the port to which the Wireless AP will be connecting into Member.

a screenshot of Vigor3900
The Configuration of the AP

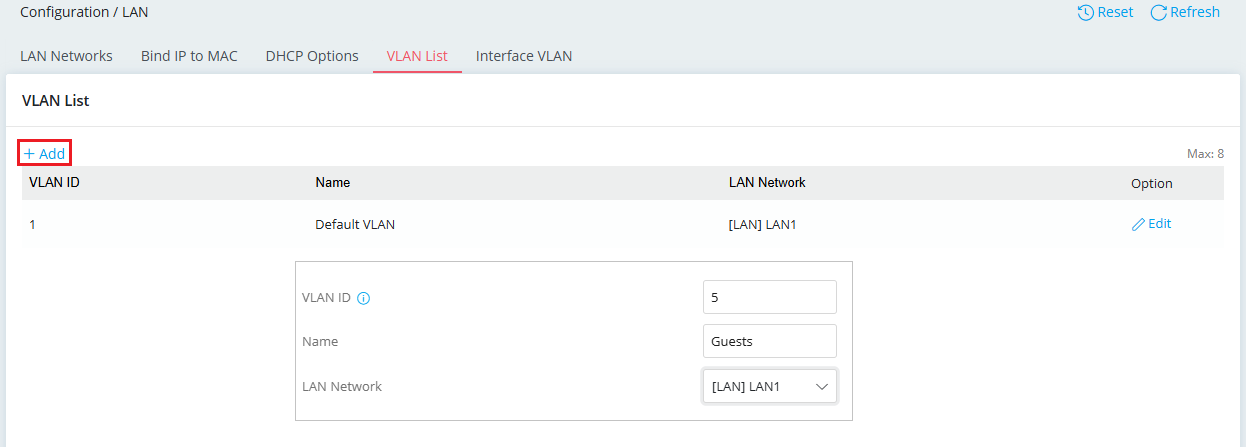

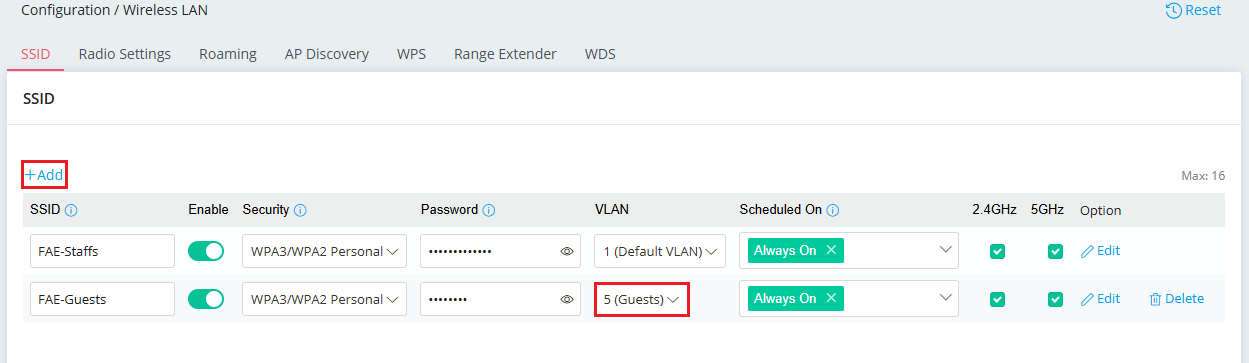

5. Go to Wireless LAN >> General Setup, enable for a second SSID, customize the SSID, and enter the VLAN ID as the same number as we use in LAN profile settings.

a screenshot of VigorAP 902

6. Set up a password for the Guest SSID at Wireless LAN >> Security.

a screenshot of VigorAP 902
Verify the Configuration

Connect the AP to the router. Now, clients connecting to the guest SSID should get an IP in the range in the new LAN profile.

a screenshot of Windows IP configuration

And they should not be able to ping a host on the main network.

a screenshot of ping failed
