DrayTek VigorSwitch P2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch P2282x also provide DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.
VigorSwitch P2282x has 24x PoE+ ports with 400W power budget, making it be suitable for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP Cam,…etc. With a 12/54V DC backup power supply, VigorSwitch P2282x can protect critical data from the connected PD devices and maintain uninterrupted network connectivity.
Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.
24x PoE/PoE+
10/100/1000Mbps Ethernet, RJ-45
4x 10G SFP+
1000Mbps/10Gbps fiber slot
400 watts
PoE Power Budget
Backup Power
2x DC redundant power socket
Interface
1Stack ID Indicator
2Stacking Button
3Console Port
424x PoE/PoE+ Gigabit Ethernet
54x SFP+ Port

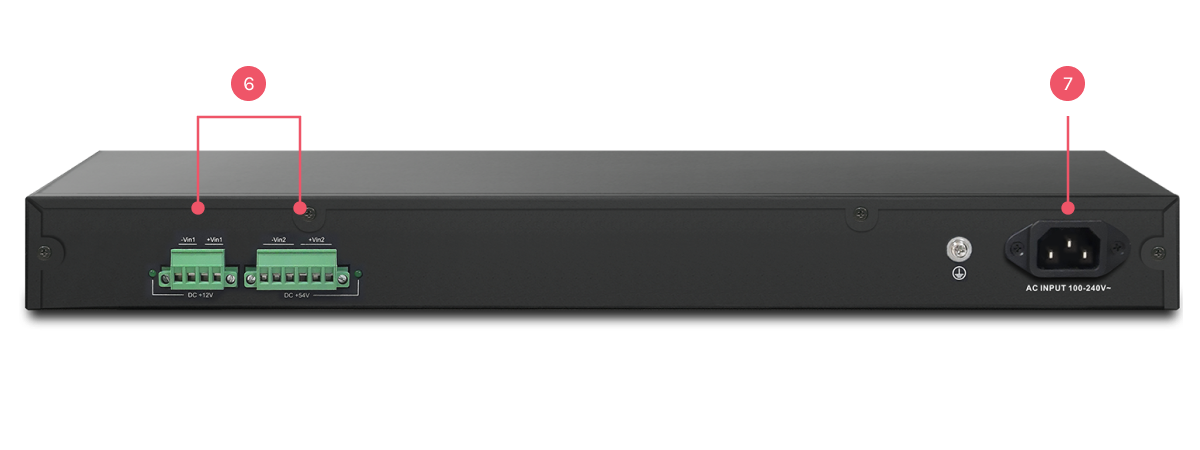

62x DC Power Socket (backup usage)
7AC Power Supply
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2282x to route the inter-VLAN traffic directly and offload the router.
Stacking
Stacking lets multiple switches function as one, improving network management, scalability, and resilience.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IPv6 Ready
VigorSwitch P2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
LLDP-MED
Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic for smoother VoIP deployment.
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP to MAC
Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
Stacking — Build a Resilient & Flexible Network
With stacking support (Since firmware v2.10.1), up to 4 VigorSwitch P2282x units can operate as one logical switch*. It enables centralized management, unified configuration, and seamless failover, allowing the network to grow stronger, smarter, and always stay online.
Centralized Management by Single IP
Manage all stacked switches under one IP.
Scalability & Expansion
Stack up to 4 units to scale up to 96 Ethernet ports and 8x 10G SFP+ uplinks.
Config & Firmware Sync
Auto-sync VLAN, QoS, and firmware for consistent setup.
Resilience & Failover
Master switch failure ensures nonstop operation.
Integrated Security
DHCP Snooping, ARP Inspection, and Port Security across the stack.
Layer 2 Feature Integration
STP, LAG, and GVRP for redundancy and VLAN automation.
Unified Monitoring & Diagnostics
Real-time traffic view, SNMP, Syslog, and Port Mirroring support for remote monitoring and troubleshooting.
Stacking is supported only between models with the same port configuration (e.g., P2282x with G2282x), not across different series.
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
Device Check
Ping Check for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stops responding to the ping, PoE cycle a port (PoE model only) or send email alert.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
Management Solution
All-in-One Management
VigorRouter SWM
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
Software Management
In the Box
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
