Powerful WiFi6 for Better Network Efficiency
VigorAP 962C is a dual-band WiFi 6 access point that can deliver fast throughput of up to 2.4 Gbps in the 5GHz band and 600 Mbps in the 2.4GHz band. This access point can support 256 concurrent clients while providing excellent and reliable wireless connectivity. With mesh network support, you can wirelessly extend the WiFi coverage for more flexibility and optimize the WiFi performance. Additionally, it can be managed by VigorACS, our cloud-based management solution, enabling you to easily install, configure, and manage from anywhere.
Dual-Band
Concurrent 5GHz and 2.4GHz
AX3000
600Mbps in 2.4GHz and 2.4Gbps in 5GHz
1x 2.5G LAN
PoE Capable Port
256 Users
2.4GHz & 5GHz shared concurrently
Interface
1
LAN：2.5G/1G/100M/10M Base-T RJ-45
PoE-PD Support
2Factory Reset Button
3DC Power Input
Key Features
WiFi 6 (ax model only)
Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed.
Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network. Learn more
PoE Power Supply
Simplify the infrastructure by getting data and power through a single cable.
Multiple SSID
Mapping WiFi clients to different VLANs and have a different set of security standards Learn how
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won't slow everyone down. Learn more
Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more
Assisted WiFi Roaming
Solve the sticky client problem and improve WiFi roaming experience. Learn more
WiFi Scheduling
Schedule WiFi On and Off to control wireless access and save energy.
Central AP Management
Manage, maintain, and monitor VigorAP 962C from the DrayTek routers. Learn more
Utilize Transmission Opportunity with OFDMA
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.
OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.
OFDM
OFDMA
Wireless Virtual Controller
Intelligent Auto-Configuration
Once connecting to VigorAP 962C, this feature can detect the type of AP, wired or wireless, and automatically determine the most appropriate network topology. For smaller wireless environment with fewer than 8 APs, it seamlessly enables Mesh mode; while in larger wired installation with more than 8 APs, then AP management mode will be activated for enhanced control and scalability.
Wireless Device Monitoring
The panel provides a comprehensive view of your network, allowing you to easily monitor devices, mesh status, and nearby APs. With the ability to monitor AP devices, it enables to check WLAN clients, MAC, IP address, Status, SSID of each radio, number of clients, and firmware version all in one page, even AP offline can be spotted. It is much easier to effectively manage and optimize the network with ease effectively.
Zero Touch Deployment
After auto-detecting and adding Node AP into management group, Root AP will provision the relevant AP configurations to node APs.
WiFi Roaming
Solve the sticky client problem and improve WiFi roaming experience.
Roaming Protocol
VigorAP 962C supports 802.11r, 802.11r, and 802.11k roaming protocols. These protocols enable WiFi clients to seamlessly transition to another AP/router that offers a stronger signal when moving within an area that has multiple APs/routers. Clients that are also compatible with these roaming protocols will experience the advantages of proactive roaming.
Assisted Roaming
The "Minimum RSSI with Adjacent AP" option in VigorAP allows for the disassociation of a client only if there is another adjacent AP/router that provides a stronger wireless signal to the client. Otherwise, the client will remain connected.
Router-based AP Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorAP to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Wireless LAN profile may be set previously on the Vigor Router. Once the managed VigorAP is connecting to the router, the setting profile will be provisioned to the VigorAP automatically.
Monitoring
Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
Three Modes in One
AP Mode
- The mode mostly used
- VigorAP acts as a bridge between wireless devices and wired Ethernet network, and exchanges data between them.
Pros
- Less performance decay
Cons
- Limited wireless coverage
- Require physical wire to connect to the Ethernet
Range Extender
- VigorAP act as a wireless repeater
- It can be a Station and an AP at the same time
Pros
- Compatibility among different brands
- Extend wireless coverage
Cons
- No self-healing uplinks
- Need to install and check manually
- Performance decay
Mesh
- Wirelessly connect 1~8 APs, and form a Mesh Group
- A mesh network creates a set of links automatically and calculate the most optimal wireless path through the wireless network back to a wired Mesh Root.
Pros
- Easy installation
- Self-healing uplinks
- Extend wireless coverage
Cons
- No compatibility among different brands
- Performance decay
Management Solution
All-in-One Management
Wireless Virtual Controller
- Automatically detect Wireless/Wired AP
- AP Discovery
- Auto-Provisioning
- Monitoring
Software Management
VigorACS
- Provisioning
- Monitoring
- Centralized Hierarchy View Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report
Wireless APP
- Build Wireless Network
- Monitoring
- Parental Control & Client Management
- Mesh WiFi Setup
- Check signal strength and speed test
- Scheduled Maintenance

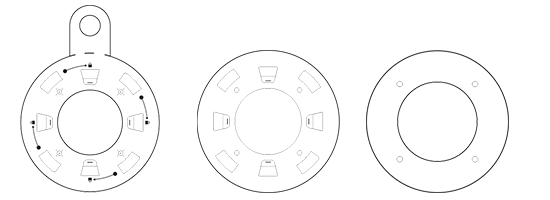

Mount brackets
Fixings and Screws
RJ-45 Cable (Ethernet)
Quick Start Guide
Note : The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
