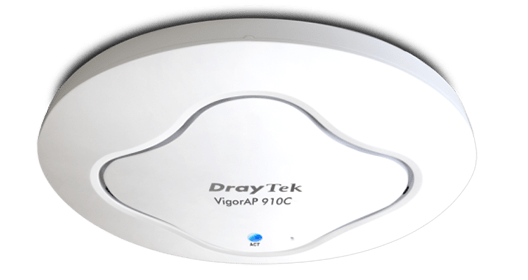

VigorAP 910C

11ac Dual-Band Ceiling-Mount Wireless AP

Overview

VigorAP 910C is a dual-band wireless access point designed for ceiling or wall mount. It supports stand-alone operation and can also integrate with DrayTek routers or VigorACS platform for central management.

AC1200
Delivers 867 Mbps at 5GHz and 300 Mbps at 2.4GHz

128 Users
At Maximum, 64 Per Radio

1 PoE LAN Port
5x 10/100/1000M Base-T RJ-45

8 SSIDs
4 Per Radio, support 802.1q VLAN

Key Features

AirTime Fairness

Equalize the transmission time of each client so the legacy devices won't slow everyone down. Learn more

Band Steering

Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more

Local RADIUS Server

User profile database for local and external 802.1x authentication.

Assisted Wi-Fi Roaming

Solves the sticky client problem and improves Wi-Fi roaming experience. Learn more

Central AP Management

Manage, maintain, and monitor VigorAP 910C from the DrayTek routers. Learn more

In-the-Box

VigorAP 910C in-the-box contains VigorAP910C main unit, ceiling mount bracket, T-rail mounting kits, fixing an screws for ceiling mounting, screw set for wall mounting, RJ-45 cable, power adapter, and quick start guide.

Awards & Reviews

Taiwan Excellence 2015

Specifications

Interface
LAN Port1x PoE Gigabit Ethernet
Antenna2x Dual-Band Internal
Gain: 4 dBi for 5GHz, 2.6 dBi for 2.4GHz
Factory Reset Button
Security Lock
Capacity
2.4GHz Peak Speed300 Mbps
5Hz Peak Speed867 Mbps
Max. Number of Connective Clients128 (64 per radio band)
WLAN
2.4GHz StandardIEEE 802.11b/g/n
5GHz StandardIEEE 802.11a/n/ac
MIMO2x2 MU-MIMO (2-stream)
2.4GHz Operating ModeAP,Universal Repeater, AP Bridge Point-to-Point, AP Bridge Point-to-Multipoint, AP Bridge WDS
5GHz Operating ModeAP,Universal Repeater, AP Bridge-WDS
Fast Roamding (WPA2/802.1x)
AP-Assisted Roaming
AirTime Fairness
Band Steering
Max. Number of SSID8 (4 per radio band)
AuthenticationPre-Shared Key, 802.1x
WPS
Client Isolation
Access Control List
Bandwidth Limit per Client
Client Numer Limit Per radio, Per SSID
Connection Time Control
Mobile Device Management
WMM
Application
Built-in RADIUS Server
RADIUS Proxy PEAP, EAP-TLS
DHCPDHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
ScheduleAuto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local ServiceHTTP, HTTPS, Telnet
ConfigurationStand Alone, TR-069 (VigorACS), Vigor Router APM
ToolsSpeed Test, AP Discovery, Statistics
Syslog
SNMPv2, v2c, v3
Managed by VigorACS
Physical
EnvironmentIndoor
MountingCeiling Mount / Wall Mount
Power MethodDC 12V @1A / 802.3af PoE
Dimension176.1mm x 176.1mm x 34.5mm
Weight400g
Operating Temperature0 to 40°C
Storage Temperature-20 to 60°C
Operating Humidity10 to 90% non-condensing
CertificateCE
