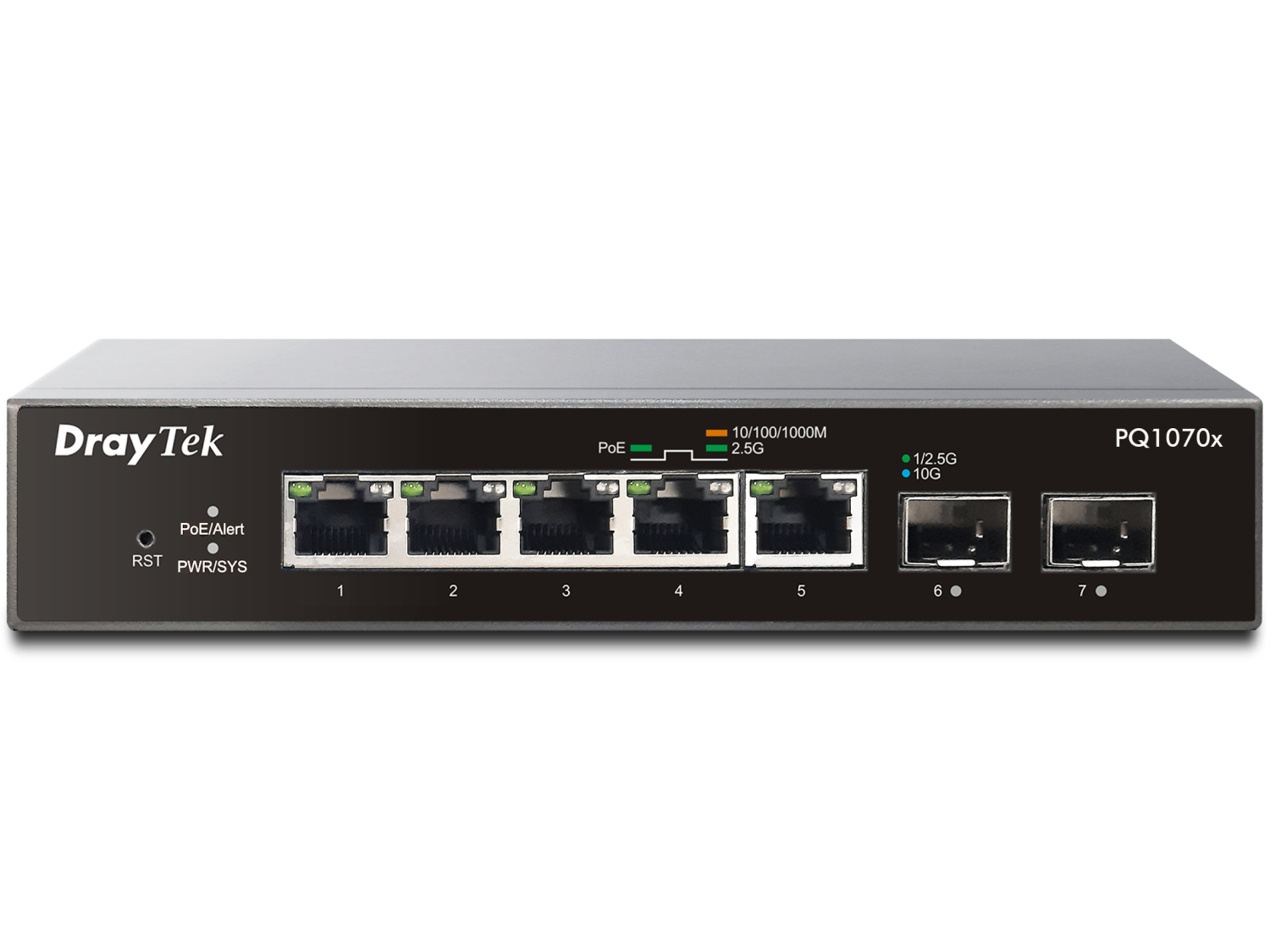

VigorSwitch PQ1070x features 2.5GbE ports for LAN and 10G SFP+ ports for uplink/downlink. When used with WiFi 6 VigorAPs (e.g., VigorAP 1062C), the VigorSwitch PQ1070x delivers full WiFi 6 performance to LAN clients.
VigorSwitch PQ1070x includes 5 PoE+ ports providing up to 30W per port. With a total output of 75W, the VigorSwitch PQ1070x is ideal for integrating more IoT applications, including LED lighting, POS (point of sale) computers, motion sensors, and more.
VigorSwitch PQ1070x is a high-performance network switch designed to enhance connectivity and efficiency in business and enterprise environments. Supporting features such as VLAN, Storm Control, Quality of Service and Loop Detection, the VigorSwitch PQ1070x is an excellence choice for businesses seeking to maintain a stable, secure, and efficient network infrastructure.
5x 2.5GbE Ports
10M/100M/1G/2.5G Ethernet, RJ-45
2x 10GbE SFP+
1G/2.5G/10G SFP Slot
75 watts
of PoE Power Budget

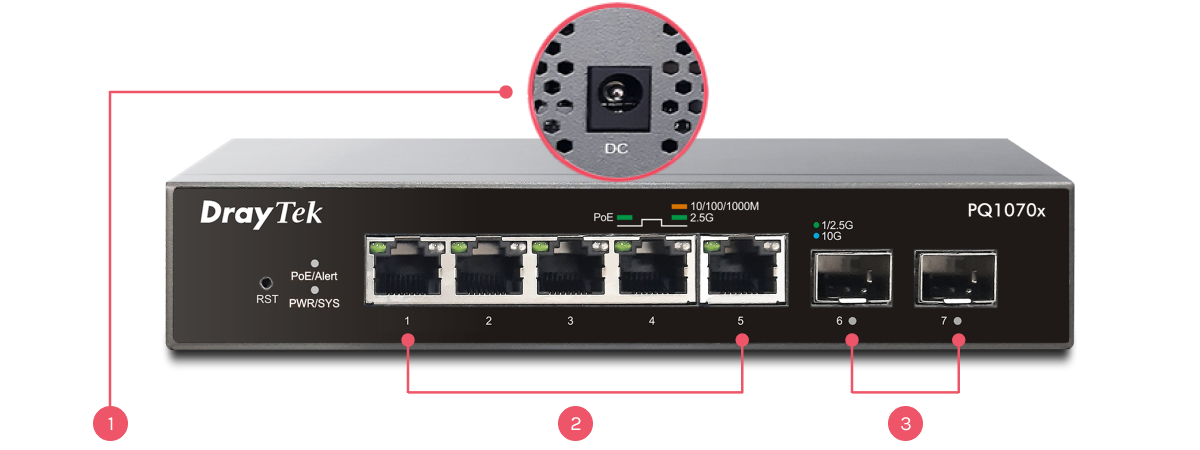

1Power Input
25x PoE/PoE+ 2.5GbE RJ-45
32x SFP+ ports
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
Ping Device Check
Enable Ping check to selected devices to keep
monitoring on their status. If ping timeout, power cycle (if PoE enabled) the
port and/or send out mail alert.
2.5GbE
Provides higher performance to Wi-Fi 6 AP and other Ethernet devices.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
IPv6 Ready
VigorSwitch PQ1070x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
In the Box
Rack Mount Kit

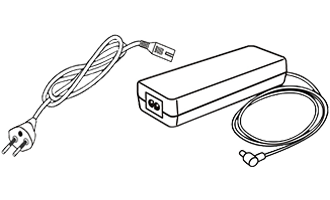

Power Adapter
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing,
conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual
performance may vary based on network conditions and activated applications.
Model
Performance
Buffer Size (Mbit)
Switching Capacity (Gbps)
Forwarding Rate (64 bytes)(Mpps)
MAC Address Table
Max. Jumbo Frame (KB)
L3 Routing Table
Ports
1 GbE
2.5 GbE
10 GbE
SFP (1G)
SFP+ (10G)
GbE/SFP Combo
Console (RJ-45)
Slide Switch
PoE
PoE++(802.3af/at/bt) Ports
PoE+(802.3af/at) Ports
PoE Power Budget (watts)
Scheduled On/Off
Standard Compliance
Ethernet Standards
Spanning Tree
STP
RSTP
MSTP
Link Aggregation
Max. Number of Group
Max. Number of Member in Each Group
Type
Traffic Load Balancing
Stacking
Max. Stackable Devices
Stacking Topology
VLAN
Max. Number of VLAN
VLAN Type
GVRP
QinQ (Basic)
Layer3 Features
Static Route
VLAN Route
DHCP Server
Multicast
IGMP Snooping
IGMP Querier
MLD Snooping
Max. Number of Multicast Group
Multicast Group Filtering / Throttling
MVR (Multicast VLAN Registration)
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
QoS
Number of QoS Queues
Queue Schedule
CoS (Class of Service)
Rate Limiting
Security
Authentication Server
802.1X/MAC Authentication
IP Source Guard
Traffic Control
Dynamic ARP Inspection (DAI)
DHCP Snooping
IP Conflict Prevention
Loop Protection
OpenFlow
*The OpenFlow functionality is project-based and must be activated by DrayTek HQ.
Please
contact your Sales for further inquiries.
",
"STP":"T",
"RSTP":"T",
"MSTP":"F",
"Max. Number of Group":"0",
"Max. Number of Member in Each Group":"0",
"Type":"",
"Traffic Load Balancing":"F",
"Max. Stackable Devices":"0",
"Stacking Topology":"-",
"Max. Number of VLAN":"32",
"VLAN Type":"
Port-based VLAN
802.1q Tag-based VLAN
Management VLAN*
",
"GVRP":"F",
"QinQ (Basic)":"F",
"Static Route":"F",
"VLAN Route":"F",
"DHCP Server":"F",
"IGMP Snooping":"v1, v2, v3",
"IGMP Querier":"F",
"MLD Snooping":"v1*, v2*",
"Max. Number of Multicast Group":"0",
"Multicast Group Filtering / Throttling":"F",
"MVR (Multicast VLAN Registration)":"F",
"Discovery":"F",
"Surveillance Topology":"F",
"Real-Time Video Streaming":"F",
"ONVIF Device Maintenance":"",
"Number of QoS Queues":"7",
"Queue Schedule":"SPQ, WRR",
"CoS (Class of Service)":"
",
"Config Backup/Restore":"T",
"Dual Image":"T",
"2-Level Administration Privilege":"F",
"Access Control ":"Access List*",
"OpenVPN Client":"F",
"sFlow":"F",
"SNMP":"",
"RMON Group":"",
"SNTP (Simple Network Time Protocol)":"T",
"LLDP":"T",
"LLDP-MED":"F",
"Mail Alert":"",
"VigorRouter Management (SWM)":"T",
"VigorConnect Management (Since f/w)":"-",
"VigorACS Management (Since f/w)":"-",
"Rack Mountable":"",
"Power Input":"DC 56V @ 1.6A",
"Backup Power Input":"-",
"Max. Power Consumption (watts)":"89.6",
"Dimension (mm)":"175 x 114 x 32",
"Weight (kg)":"",
"Operating Temperature":"0 to 45°C",
"Storage Temperature":"-20 to 70°C",
"Operating Humidity (non-condensing)":"10 to 90%",
"Storage Humidity (non-condensing)":"5 to 90%"
}
Note:
* : Future Support
The stated throughput performance figures are the maximum derived from DrayTek internal testing,
conducted under
optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary
based on
network conditions and activated applications.
Rack Mount Kit
Power Adapter
Quick Start Guide
