DrayTek VigorBX 2000 is an IP-PBX and Router to provide SMBs Internet access, VPN connectivity, and telephone system all in one equipment. It is capable of 50 registered extensions and 20 simultaneous calls to link IP-phones on LAN as well as which of on a remote network connected via VPN.
VigorBX 2000 offers reliable and fast Internet connectivity through its 2x fixed line WAN interfaces, 1x RJ-11 for ADSL/VDSL and 1x RJ-45 for broadband connections. You can also add up to 2 wireless connectivity with 4G/LTE USB modems. All of the WAN can be active simultaneously for load-balancing or be the backup for each other. And it supports up to 32 concurrent VPN tunnels to link to remote offices or teleworkers.
50 Extensions
Up to 20 concurrent calls
Up to 4 WAN
Load balancing, NAT throughput up to 300 Mbps
32 VPN
IPsec VPN throughput up to 50 Mbps
50k SessionsRecommended for 50 hosts
Link the internal IP-phones together and connects the extensions to the external telephone network.
Build a secure and private tunnel from the LAN of VigorBX 2000 to the remote offices and teleworkers over the Internet. Learn more
The VPN works through firewalls providing secure remote access to any network environment. Learn more
Maximize throughput and reliability by using multiple Internet connections. Learn more
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

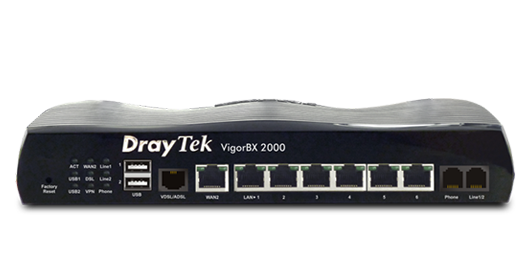

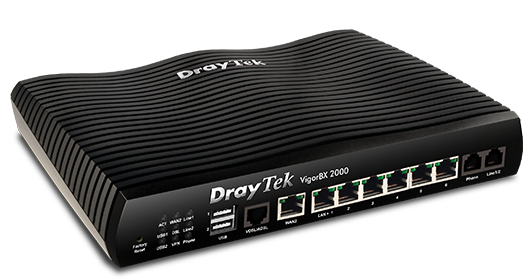

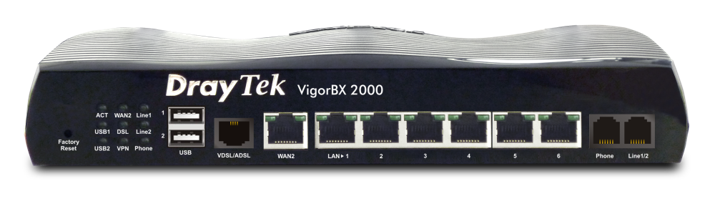

VigorBX 2000
Phone Adapter
RJ-45 Cable (Annex B)
RJ-11 to RJ-11 Cable (Annex A)
Power Adapter
Quick Start GuideThe throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Interface | |
| WAN Interface | 1x RJ-11 for ADSL2/VDSL2 1x 1000Base-TX Ethernet, RJ-45 |
| LAN Interface | 6x 10/100/1000Base-TX Ethernet, RJ-45 |
| Voice Interface | 2x FXO RJ-11 (with Y-cable) 1x FXS RJ-11 |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
Performance | |
| NAT Throughput | 300 Mbps |
| IPsec VPN Performance | 50 Mbps (AES 256 bits) |
| SSL VPN Performance | 25 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent SSL VPN | 16 |
IP-PBX | |
| Extensions | 50 |
| Concurrent Calls | 20 |
| Trunks | 12 SIP Trunk + 2 PSTN Trunk + 8 Custom Trunk |
| WAN IP White List | |
| Automatic Block Extension for Wrong Password | |
| Dial Plan | 60 Digit Map, 100 Speed Dial, 20 Call Barring |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Hunt Group | 20 |
| Voice Mail | Send by Email, Save to USB |
| Auto Attendant | |
| Customer Survey | |
| Virutal Fax | |
| PBX Status | 1000 Call Detail Records, 1000 Fax Detail Records, 50 Extension Monitor |
| Voice Codec | G.711MU, G.711A, G.729A/B, G.726_32 |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
VDSL/ADSL | |
| VDSL Standards | ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a |
| VDSL Band Plan | 997 |
| G.Vectoring | |
| ADSL Standards | ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite) |
| ADSL2 Standards | ITU-T G.992.3, G.992.3 Annex J |
| ADSL2+ Standards | ITU-T G.992.5, G.992.5 Annex M |
| DSL Forum | WT-114, TR-048/67, TR-100 |
Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Multi-VLAN/PVC | |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 6 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Web Portal | |
Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | (Requires external storage) |
VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA1, SHA-256, MD5 |
| VPN Redundancy | Load Balancing, Failover |
| NAT-Traversal (NAT-T) | |
Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List |
| Syslog | |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
Physical | |
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 18 watts |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 530g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |  |
All specifications are subject to change without notice.
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
