The DrayTek Vigor2132 high-performance router is developed in compliance with the super-fast broadband architecture. Vigor2132 features 1x Gigabit WAN port, 4x Gigabit LAN ports and integrated wireless access point. There are also 2 USB ports for a printer or network storage, which allows file sharing on the local network. In addition, the support of 802.1Q VLAN on WAN and LAN enables the router to provide triple-play services. Through the combination of Gigabit WAN and LAN ports, the downstream data and voice packet can be flawlessly delivered.

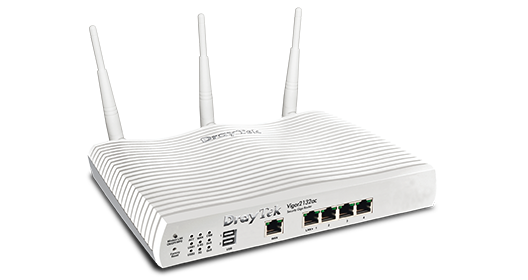

Vigor2132ac has integrated dual-band Wi-Fi, featuring the latest Wi-Fi standard 802.11ac on the 5 GHz band and 802.11n on the 2.4 GHz band. It delivers wireless speed up to 1300 Mbps + 300 Mbps, ensures a smooth wireless connection for HD videos, gaming, and internet phones.
The Vigor2132 has the "VoIP QoS" feature to guarantee the priority for VoIP calls. This will ensure good call quality even when the Internet bandwidth is limited. In addition, the bandwidth consumption of each LAN client can be managed via Session Limit and Bandwidth Limit feature. You may also to set up The "Smart Bandwidth Limit" to apply bandwidth limit only to the PCs which are running inappropriate applications, such as P2P download.
The Vigor2132 also included comprehensive VPN feature. It allows up to 2 concurrent remote connections, which can be a LAN-to-LAN VPN connecting the local network to the main office, or Host-to-LAN which allows a user to access the local network remotely. A wide variety of VPN protocols are supported, including PPTP, L2TP, IPsec, and L2TP over IPSec.
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Interface | |
| WAN Port | 1x 10/100/1000M, RJ-45 (Vigor2132ac) or 1x 10/100/1000M fiber SFP slot (Vigor2132FVn) |
| LAN Port | 4x 10/100/1000Base-Tx, RJ-45 |
| USB Port | 2x USB 2.0 |
| 2.4G WLAN | 300Mbps 802.11n |
| 5G WLAN | 1300Mbps 802.11ac (Vigor2132ac) |
| FXS RJ-11 | 2 (Vigor2132FVn) |
| Wireless Antenna | 2 (Vigor2132FVn) or 3 (Vigor2132ac) |
Capacity | |
| Max. Number of NAT Sessions | 32,000 |
| Max. Concurrent VPN Tunnels | 2 |
Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Multi-VLAN/PVC for Triple Play | |
| 3G/4G | |
| Connection Detection | ARP, Ping |
LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Local DNS Server | |
| Conditional DNS Forwarding | |
Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv2 |
| Policy-based Routing | Protocol, IP Address, Port |
| Multicast | IGMP Proxy, IGMP Snooping |
| SMB File Sharing | (Requires external storage) |
VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, MD5 |
| NAT-Traversal (NAT-T) | |
Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port |
| VoIP Prioritization | |
Wireless LAN | |
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| WMM | |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
VoIP Gateway (Vigor2132FVn) | |
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
Physical | |
| Power Supply | DC 12V @ 2A |
| Dimension | 241mm x 165mm x 44mm |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |
|
All specifications are subject to change without notice.
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
