Vigor180 is designed for fiber-to-the-premises (FTTP) deployment. It features an integrated XGS-PON interface and 10GbE LAN ports to deliver true 10G symmetric fiber access, ensuring fast speed for both downstream and upstream traffic. Vigor180 eliminates bottlenecks and integrates seamlessly with existing network setup.
XGS-PON WAN
10G/10G symmetric fiber
8.12 Gbps
NAT Throughput
10G LAN
10G Ethernet, RJ-45
10k Sessions
Recommended for a network of 10 hosts

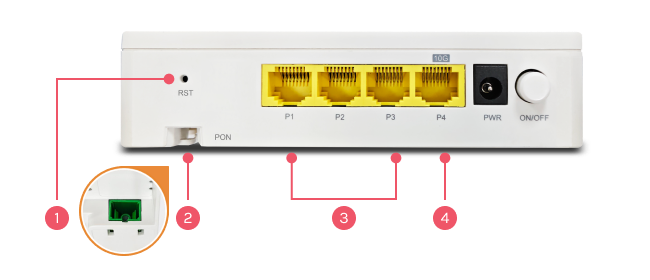

1Factory Reset Button
2Fixed WAN Port: 1x XGS-PON WAN, SC/APC
3Fixed LAN Port: 3x GbE RJ-45
4Fixed LAN Port: 1x 10GbE RJ-45
Key Features
10GbE
Provides ultra-fast 10G connectivity to meet the needs of high-demand network.

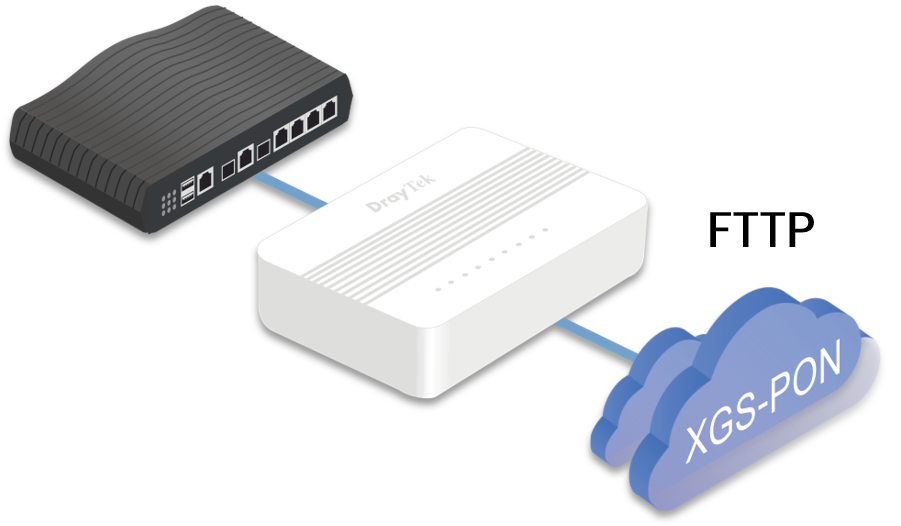

10G / 10G Symmetric XGS-PON Connectivity
Vigor180 delivers true 10G symmetric fiber access, designed to meet the growing demand for both downstream and upstream bandwidth.
True 10G Symmetric Fiber Access
- Based on ITU-T G.9807.x XGS-PON, delivering 9.953 Gbps downstream and upstream.
Bridge / Router Deployment
- Routed Gateway Operation for routing, NAT, and security services.
- Port-Based Bridging for transparent ONT handoff to ISP or customer gateways.

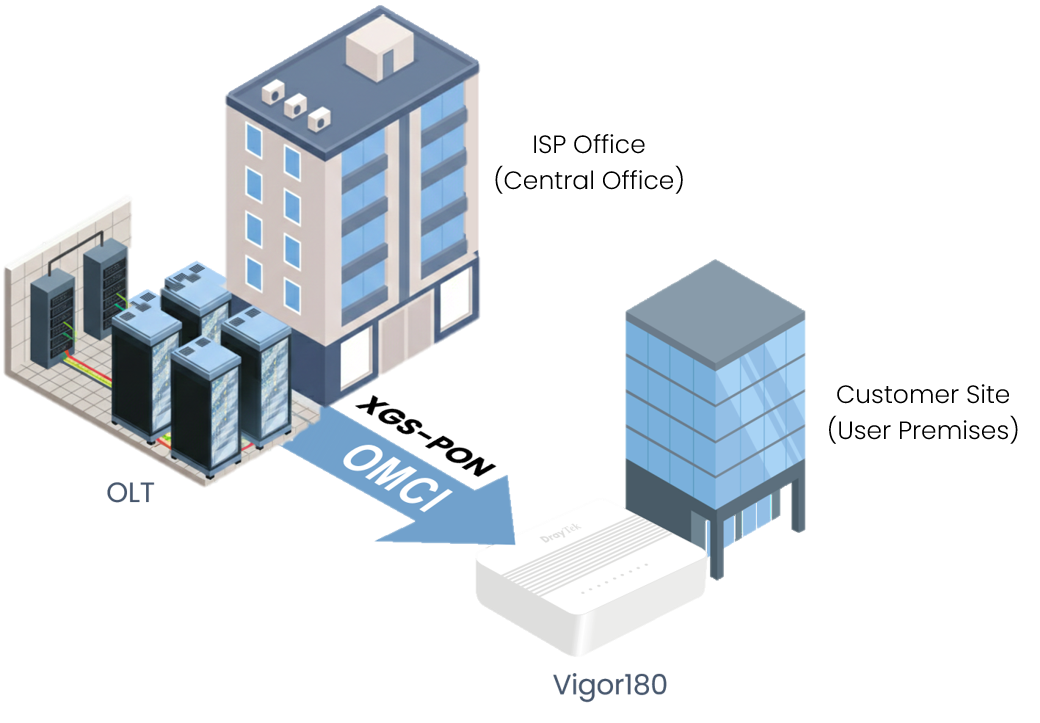

OMCI Protocol Support
Vigor180 ensuring seamless and standardized communication between your network devices.
ITU-T G.988 Compliance
- Adheres to the latest industry standards for OMCI (ONT Management and Control Interface), ensuring a robust and structured management channel.
- Engineered for compatibility with industry OLT systems.
Management Solution
Software Management
VigorACS 3
- Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application Based SD-WAN Policy
*Click here to check the support model list. - Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
In the Box
RJ-45 Cable (Ethernet)
Power Adapter
Quick Start Guide
Note: The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
Model |
Performance |
NAT Session | Max. PON (Mbps) | Max. NAT (Mbps) | Max. NAT with Hardware Acceleration (Mbps) | Max. NAT with Hardware Acceleration : Single WAN (Mbps) | Max. NAT with Hardware Acceleration : Dual WAN (Mbps) | Max. NAT with Software Acceleration (single-directional) (Mbps) | Max. NAT with Software Acceleration (bi-directional) (Mbps) | Max. VDSL Link Rate (Mbps) | Max. ADSL Link Rate (Mbps) |
WAN |
xDSL | XGS-PON | Ethernet (1 GbE) | Ethernet (2.5 GbE) | Ethernet (10 GbE) | SFP (1G) | SFP (10G) | SFP/Ethernet Combo |
Ethernet - Switchable
* When this field is filled, the port count above includes both switchable and
fixed ports.
|
SFP - Switchable
* When this field is filled, the port count above includes both switchable and
fixed ports.
|
SFP/Ethernet Combo - Switchable
* When this field is filled, the port count above includes both switchable and
fixed ports.
|
VDSL Standards | VDSL2 Profile | G.fast Profile | ADSL Standards | Annex Support | Other Standards | Band Plan | Cellular (via USB) | Cellular (Built-in) | Wireless WAN (2.4GHz or 5GHz) | Wireless WAN (2.4GHz + 5GHz) |
3G |
WCDMA (3G) Band |
4G LTE |
SIM Slot | LTE Antenna (External Dipole) | LTE Antenna (Internal PIFA) | LTE Category (Up to) | LTE Antenna Peak Gain (dBi) | Max. Rx Link Rate (Mbps) | Max. Tx Link Rate (Mbps) | FDD Band | TDD Band | SMS Gateway |
5G |
5G Band | 4G/5G Antenna (External Dipole) | 4G/5G Antenna (Internal PIFA) | 4G/5G Antenna Peak Gain (dBi) | 5G NSA Max. Rx Link Rate (Mbps) | 5G NSA Max. Tx Link Rate (Mbps) | 5G SA Max. Rx Link Rate (Mbps) | 5G SA Max. Tx Link Rate (Mbps) | Note |
Internet Connection |
IPv4 | IPv6 | LTE WAN Bridge | 802.1p/q Multi-VLAN Tagging | Virtual WAN | PPPoE Pass-Through | MPoA Bridge | Failover | Load Balancing | Connection Detection | WAN Data Budget | Dynamic DNS | DrayDDNS |
LAN |
Fixed LAN (RJ-45, 1GbE) | Fixed LAN (RJ-45, 2.5GbE) | Fixed LAN (RJ-45, 10GbE) | Fixed LAN (SFP, 10GbE) | LAN Subnet | VLAN | Max. Number of VLAN | DHCP Server | IPv6 Address Assignment | LAN IP Alias | IP Pool Count | PPPoE Server | Wired 802.1x Authentication | Port Mirroring | Local DNS Server | Conditional DNS Forwarding | Hotspot Web Portal (Profile No.) | Hotspot Authentication |
WLAN |
2.4GHz WLAN | 5GHz WLAN | WiFi Antenna (External) | WiFi Antenna (Internal) | 2.4GHz Antenna Gain (dBi) | 5GHz Antenna Gain (dBi) | 2.4GHz Max. Link Rate (Mbps) | 5GHz Max. Link Rate (Mbps) | Max. Number of SSIDs (per band) | Security Mode | Authentication | Wi-Fi 7 | Wi-Fi 6 | 4K-QAM | OFDMA | Roaming | WPS | WDS | Access Control | AirTime Fairness | Band Steering | WMM | Mesh (5GHz Only) |
Other Ports |
Console (RJ-45) | USB | USB Type | USB Application | SMB File Sharing (Requires external storage) | FXS (RJ-11) |
Networking |
Routing | Policy-based Routing | Smart Action | DNS Security (DNSSEC) | IGMP | Local RADIUS server |
Bandwidth Management |
Traffic Shaping Policy | IP-based Bandwidth Limit | IP-based Session Limit | QoS (Quality of Service) | APP QoS | Default Policy | VoIP Prioritization |
NAT |
Port Forwarding | DMZ Host | Port Trigger | ALG (Application Layer Gateway) | UPnP |
Management |
Local Service | Config Backup/Restore | Config File Compatibility | Firmware Upgrade | 2-Level Administration Privilege | Role-based Privilege | Access Control | Notification Alert | SNMP | Syslog | Broadcast DSL Info to LAN | VPN Managment | Virtual AP Controller (Device up to) | Mesh (Number of manageable APs) | Virtual Switch Controller | VigorACS Management (Since f/w) |
Security |
URL/IP Reputation | Threat Protection | Firewall Filter | Port Knocking | Defense Setup | MAC Filtering Profile | IPv6 Address Security |
IAM |
Users & Groups | Access Policies | Group Policies | Conditional Access Policy | Resources | Account Status | Backup and Restore |
VPN |
Site-to-Site VPN | Teleworker VPN | EasyVPN | Protocols | Max. VPN Tunnels | Max. OpenVPN + SSL VPN Tunnels | IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | IPsec VPN Throughput (AES 256 bits) (bi-directional) (Mbps) | SSL VPN Throughput (single-directional) (Mbps) | SSL VPN Throughput (bi-directional) (Mbps) | WireGuard VPN Throughput (single-directional) (Mbps) | WireGuard VPN Throughput (bi-directional) (Mbps) | User Authentication | IKE Authentication | IPsec Authentication | Encryption | Translate Local Network(Site-to-Site VPN) | VPN Trunk (Redundancy) | Single-Armed VPN | NAT-Traversal (NAT-T) | VPN from LAN | VPN Isolation | VPN Packet Capture | VPN 2FA Authentication for AD/LDAP | VPN Matcher | VPN Connection Status | Backup & Restore |
VoIP |
Protocols | SIP Registrars | Dial Plan | Call Features | Voice Codec | Caller ID |
Linux Applications |
Suricata | VigorConnect |
Monitoring |
Clients List | Log Center | Wireless Information | WAN | ARP Table | Route Table | DHCP Table | IPv6 TSPC Status | IPv6 Neighbor Table | LLDP Neighbors | DNS Cache Table | Cellular WAN Status | DSL Status | XGSPON Information | Remote DSL Status | SFP Information | PPPoE Pass-Through | Session Table | Running Table |
Physical |
Power Input | Max. Power Consumption (watts) | Memory | Dimension (mm) | Weight (g) | Operating Temperature | Storage Temperature | Operating Humidity (non-condensing) |
Vigor180 |
K | 9953 | 8120 | 0 | 0 | 0 | - | - | - | - | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | F | F | - | - | - | - | - | - | - | F Learn More | 0 | 0 | - | - | - | - | - | PPPoE DHCP Static IP |
PPP DHCPv6 Static IPv6 TSPC 6rd 6in4 Static Tunnel |
F | T | T | F | F | F | F | T | - | 3 | - | 1 | 0 | - | 0 | IPv4/IPv6 DHCP Server IPv4/IPv6 DHCP Relay |
F | - | F | F | F | F | F | 0 | 0 | 0 | 0 | 0 | F | F | F | F | F | F | F | 0 | - | F | - | IPv4 Static Route IPv6 Static Route |
F | F | IGMP v2/v3 IGMP Proxy IGMP Snooping |
F | F | F | F | F | F | F | T | T | T | SIP, RTSP, FTP, H.323 | T | HTTP HTTPS Telnet SSH v2 TR-069 |
T | - | WUI, TFTP, TR-069 | F | F | Access List | v2, v2c, v3 | T | F | 0 | 0 | - | 0 | V5.3.3 | F | F | IP, Traffic | F | ARP Spoofing, IP Spoofing | F | T | F | F | F | F | F | F | F | F | F | F | - | - | - | - | - | - | - | - | - | F | F | F | F | F | F | - | F | F | - | F | F | F | T | F | T | T | T | T | T | T | T | T | F | F | T | F | F | T | T | F | DC 12V @ 1A | 12 | - | 150 x 115 x 36 | 0 to 40°C | -25 to 70°C | 10 to 90% |
{
"NAT Session":"K",
"Max. PON (Mbps)":"9953",
"Max. NAT (Mbps)":"8120",
"Max. NAT with Hardware Acceleration (Mbps)":"0",
"Max. NAT with Hardware Acceleration : Single WAN (Mbps)":"0",
"Max. NAT with Hardware Acceleration : Dual WAN (Mbps)":"0",
"Max. NAT with Software Acceleration (single-directional) (Mbps)":"-",
"Max. NAT with Software Acceleration (bi-directional) (Mbps)":"-",
"Max. VDSL Link Rate (Mbps)":"-",
"Max. ADSL Link Rate (Mbps)":"-",
"xDSL":"0",
"XGS-PON":"1",
"Ethernet (GbE)":"0",
"Ethernet (2.5 GbE)":"0",
"Ethernet (10 GbE)":"0",
"SFP (1GbE)":"0",
"SFP (10GbE)":"0",
"SFP/Ethernet Combo (GbE)":"0",
"Ethernet - Switchable":"F",
"SFP - Switchable":"0",
"SFP/Ethernet Combo - Switchable":"0",
"VDSL Standards":"",
"VDSL2 Profile":"",
"G.fast Profile":"",
"ADSL Standards":"",
"Annex Support":"",
"Other Standards":"",
"Band Plan":"",
"Cellular (via USB)":"-",
"Cellular (Built-in)":"-",
"Wireless WAN (2.4GHz or 5GHz)":"F",
"Wireless WAN (2.4GHz + 5GHz)":"F",
"WCDMA (3G) Band":"",
"SIM Slot":"-",
"LTE Antenna (External Dipole)":"-",
"LTE Antenna (Internal PIFA)":"-",
"LTE Category (Up to)":"-",
"LTE Antenna Peak Gain (dBi)":"",
"Max. Rx Link Rate (Mbps)":"-",
"Max. Tx Link Rate (Mbps)":"-",
"FDD Band":"",
"TDD Band":"",
"SMS Gateway":"F",
"5G Band":"",
"4G/5G Antenna (External Dipole)":"0",
"4G/5G Antenna (Internal PIFA)":"0",
"5G Antenna Peak Gain (dBi)":"-",
"5G NSA Max. Rx Link Rate (Mbps)":"-",
"5G NSA Max. Tx Link Rate (Mbps)":"-",
"5G SA Max. Rx Link Rate (Mbps)":"-",
"5G SA Max. Tx Link Rate (Mbps)":"-",
"IPv4":"PPPoEDHCPStatic IP",
"IPv6":"PPPDHCPv6Static IPv6TSPC6rd6in4 Static Tunnel",
"LTE WAN Bridge":"F",
"802.1p/q Multi-VLAN Tagging":"T",
"Multi-VLAN/PVC":"",
"Virtual WAN":"T",
"PPPoE Pass-Through":"F",
"MPoA Bridge":"F",
"Failover":"F",
"Load Balancing":"",
"Connection Detection":"",
"WAN Data Budget":"F",
"Dynamic DNS":"T",
"DrayDDNS":"-",
"Fixed LAN (RJ-45, 1GbE)":"3",
"Fixed LAN (RJ-45, 2.5GbE)":"-",
"Fixed LAN (RJ-45, 10GbE)":"1",
"Fixed LAN (SFP, 10GbE)":"0",
"LAN Subnet":"-",
"VLAN":"",
"Max. Number of VLAN":"0",
"DHCP Server":"IPv4/IPv6 DHCP ServerIPv4/IPv6 DHCP Relay",
"IPv6 Address Assignment":"",
"LAN IP Alias":"F",
"IP Pool Count":"-",
"PPPoE Server":"F",
"Wired 802.1x Authentication":"F",
"Port Mirroring":"F",
"Local DNS Server":"F",
"Conditional DNS Forwarding":"F",
"Hotspot Web Portal (Profile No.)":"0",
"Hotspot Authentication":"",
"2.4GHz WLAN":"",
"5GHz WLAN":"",
"WiFi Antenna (External)":"0",
"WiFi Antenna (Internal)":"0",
"Antenna Type":"",
"2.4GHz Antenna Gain (dBi)":"",
"5GHz Antenna Gain (dBi)":"",
"2.4GHz Max. Link Rate (Mbps) ":"0",
"5GHz Max. Link Rate (Mbps)":"0",
"Max. Number of SSIDs (per band)":"",
"Security Mode":"",
"Authentication":"",
"Wi-Fi 7":"F",
"Wi-Fi 6":"F",
"4K-QAM":"F",
"OFDMA":"F",
"WPS":"",
"WDS":"",
"WLAN Access Control":"",
"AirTime Fairness":"F",
"Band Steering":"F",
"WMM":"F",
"Mesh (5GHz Only)":"",
"Console (RJ-45)":"0",
"USB":"-",
"USB Type":"",
"USB Application":"",
"SMB File Sharing (Requires external storage)":"F",
"FXS (RJ-11)":"-",
"Routing":"IPv4 Static RouteIPv6 Static Route",
"Policy-based Routing":"",
"Smart Action":"F",
"DNS Security (DNSSEC)":"F",
"IGMP":"IGMP v2/v3IGMP ProxyIGMP Snooping",
"Local RADIUS server":"F",
"Traffic Shaping Policy":"F",
"IP-based Bandwidth Limit":"F",
"IP-based Session Limit":"F",
"QoS (Quality of Service)":"",
"APP QoS":"F",
"Default Policy":"F",
"VoIP Prioritization":"F",
"Port Forwarding":"T",
"DMZ Host":"T",
"Port Trigger":"T",
"ALG (Application Layer Gateway)":"SIP, RTSP, FTP, H.323",
"UPnP":"T",
"Local Service":"HTTPHTTPSTelnetSSH v2TR-069",
"Config Backup/Restore":"T",
"Config File Compatibility":"-",
"Firmware Upgrade":"WUI, TFTP, TR-069",
"2-Level Administration Privilege":"F",
"Role-based Privilege":"F",
"Access Control":"Access List",
"Notification Alert":"",
"SNMP":"v2, v2c, v3",
"Syslog":"T",
"Broadcast DSL Info to LAN":"F",
"VPN Managment":"0",
"Virtual AP Controller":"0",
"Mesh (Number of manageable APs)":"-",
"Switch Management (SWM)":"0",
"Virtual Switch Controller":"0",
"VigorACS Management (Since f/w)":"V5.3.3",
"URL/IP Reputation":"F",
"Threat Protection":"F",
"Firewall Filter":"F",
"Port Knocking":"IP, Traffic",
"Defense Setup":"ARP Spoofing, IP Spoofing",
"MAC Filtering Profile":"F",
"IPv6 Address Security":"T",
"Users & Groups":"F",
"Access Policies":"F",
"Group Policies":"F",
"Conditional Access Policy":"F",
"Resources":"F",
"Account Status":"F",
"Backup and Restore":"F",
"Site-to-Site VPN":"F",
"Teleworker VPN":"F",
"EasyVPN":"F",
"VPN Protocols":"",
"Max. VPN Tunnels":"-",
"Max. OpenVPN + SSL VPN":"-",
"IPsec VPN (AES 256 bits) (single-directional) (Mbps)":"-",
"IPsec VPN (AES 256 bits) (bi-directional) (Mbps)":"-",
"SSL VPN (single-directional) (Mbps)":"-",
"SSL VPN (bi-directional) (Mbps)":"-",
"Wireguard VPN (single-directional) (Mbps)":"-",
"Wireguard VPN (bi-directional) (Mbps)":"-",
"User Authentication":"",
"IKE Authentication":"",
"IPsec Authentication":"",
"Encryption":"",
"Translate Local Network(Site-to-Site VPN)":"-",
"VPN Trunk (Redundancy)":"",
"Single-Armed VPN":"F",
"NAT-Traversal (NAT-T)":"F",
"VPN from LAN (Mainline fw only)":"F",
"VPN Isolation (Mainline fw only)":"F",
"VPN Packet Capture (Mainline fw only)":"F",
"VPN 2FA Authentication for AD/LDAP (Mainline fw only)":"F",
"VPN Matcher":"-",
"VPN Connection Status":"F",
"Backup & Restore":"F",
"Protocols":"",
"SIP Registrars":"-",
"Dial Plan":"",
"Call Features":"",
"Voice Codec":"",
"Caller ID":"",
"Suricata":"F",
"VigorConnect":"F",
"Clients List":"F",
"Log Center":"T",
"Wireless Information":"F",
"WAN":"T",
"ARP Table":"T",
"Route Table":"T",
"DHCP Table":"T",
"IPv6 TSPC Status":"T",
"IPv6 Neighbor Table":"T",
"LLDP Neighbors":"T",
"DNS Cache Table":"T",
"Cellular WAN Status":"F",
"DSL Status":"F",
"XGSPON Information":"T",
"Remote DSL Status":"F",
"SFP Information":"F",
"Monitoring PPPoE Pass-Through":"T",
"Session Table":"T",
"Running Table":"F",
"Power Input":"DC 12V @ 1A",
"Max. Power Consumption (watts)":"12",
"Memory":"-",
"Dimension (mm)":"150 x 115 x 36",
"Weight (g)":"",
"Operating Temperature":"0 to 40°C",
"Storage Temperature":"-25 to 70°C",
"Operating Humidity (non-condensing)":"10 to 90%"
}
Note:
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
