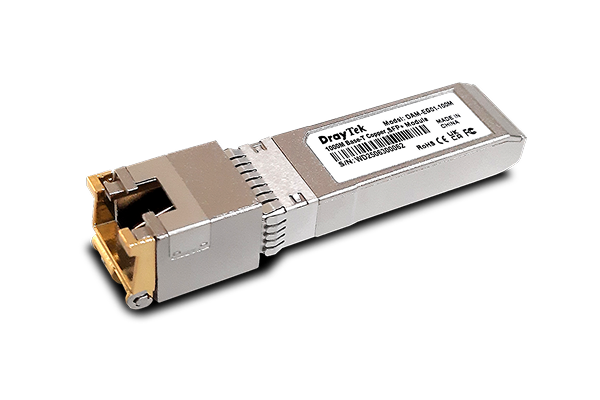

The DAM-EG01-100m transceiver is a compact, pluggable SFP transceiver designed for Gigabit Ethernet connectivity. It supports 10M BASE-T, 100M BASE-T, and 1000M BASE-T, ensuring easy conversion from SFP to Ethernet. With its hot-pluggable SFP form factor, it allows quick and flexible installation. It supports transmission distances up to 100 meters over Cat 5 copper cables via an RJ-45 connector, making it a cost-effective solution for enterprises to establish connections within racks or other copper interfaces.
| Specification | |
| Connector Type | SFP to RJ-45 |
| Data Rate | Fiber: 1G SFP Ethernet: 10/100/1000 Mbps |
| Length | 100m |
| Hot Pluggable | |
| Power Supply | 3.3 V |
| Power Consumption | 1 watt |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity (non-condensing) | 0 to 85% RH |
| Certificate |
RoHS
|
