Vigor C410ax 是一款高效能行動網路安全路由器,內建 4G 行動網路功能,提供穩定且不中斷的網際網路連線。以 4G 行動網路作為主要 WAN,預設為「永遠在線(Always On)」模式,確保企業在進行重要資料傳輸時保持穩定連線。
內建 2 個 SIM 卡插槽(一次僅可使用 1 張 SIM 卡連線上網),提供網路備援並確保行動連線穩定。內建 VPN、QoS、路由策略、網頁內容過濾、身分與存取管理(IAM)、熱點上網服務等專業功能,適合需要高效能且安全網路的中小企業使用。
此外,可透過乙太網路 WAN 或 WiFi(2.4GHz / 5GHz)作為備援 WAN,確保連線不中斷。Vigor C410ax 同時支援 802.11ax(WiFi 6),提供快速且高效的無線網路效能。
4G 行動網路
16條VPN
AX3000 WiFi
50k連線數
1WiFi天線

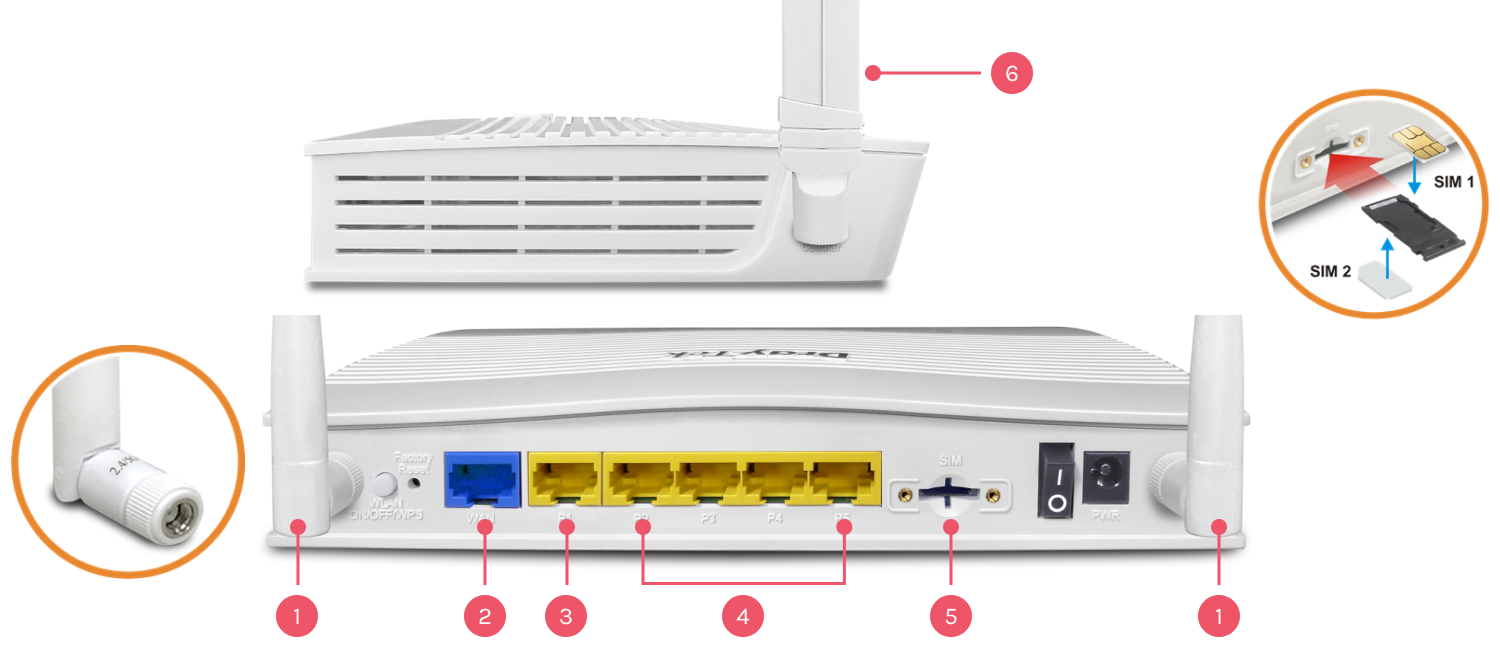

3WAN埠: 1x GbE RJ-45
3LAN/WAN 可切換埠: 1x GbE RJ-45
4LAN埠: 4x GbE RJ-45
52x Nano SIM 卡插槽
62x 行動網路天線
無須外接USB行動網卡,插入SIM卡即可連上3G/4G網路,分攤有線固網流量或作為備援
與總部企業網路、分公司、或是遠端工作者之間建立安全加密的連線 瞭解更多
可在幾秒內啟用的安全VPN:無需金鑰、設定,僅需要登入即可連上VPN
一套用於管理數位憑證、身份驗證和資源存取控制的解決方案,確保僅有授權的使用者或群組能正確地存取關鍵資源
提供上傳、下載頻寬限制、連線數限制、QoS優先權來防止頻寬資源被占用。可針對IP設定不同限制
DrayTek免費提供的動態DNS服務,讓您隨時隨地、用好記的名稱連上您的Vigor路由器 了解更多
以網址關鍵字或網站類別過濾不安全的網頁與不適當的內容,提升工作效率,保護網路安全
透過URL分類和IP分類來控管網路存取,強化網路安全性並防範線上威脅
提供Wi-Fi服務同時進行使用者認證、播送廣告、或客製化到達頁面 瞭解更多
Vigor C410ax的全方位管理平台,用於維護和監控 Vigor無線基地台 與 Vigor網路交換器
自動將所有VigorAP連接,輕鬆簡單擴展無線網路
LTE 天線 x 2
2.4G/5G Wi-Fi 天線 x 2
RJ-45 Cat-5 乙太網路攬線
電源變壓器
快速安裝手冊以上列出的各項效能表現數據皆是最大值,在居易科技內部搭配最佳網路環境下所測得,用戶實際測得的效能數據會因不同的硬體配件、網路環境或是軟體差異等而有所不同。
介面 |
||
| WAN埠 | 1x Gigabit Ethernet | |
| LAN/WAN可切換埠 | 1x Gigabit Ethernet | |
| LAN埠 | 4x Gigabit Ethernet | |
| 4G LTE天線 |
2x 外部天線, 增益: 3.68dBi |
|
| WiFi天線 |
2x 外部天線, 增益: 5GHz頻段 2.8dBi、2.4GHz頻段 2.1dBi 1x 內部天線 |
|
| 2.4G 無線網路 | 802.11ax 2x2 MIMO | |
| 5G 無線網路 | 802.11ax 3x3 MU-MIMO | |
Performance |
||
| NAT Session | 50K | |
| Max. NAT (Mbps) | 940 | |
WAN |
||
| Ethernet (1 GbE) | 1 | |
| Switchable WAN/LAN (GbE) | 1 | |
| Cellular (Built-in) | 4G | |
| Wireless WAN (2.4GHz + 5GHz) | ||
3G |
||
| WCDMA (3G) Band | 1, 8 | |
| *因應國籍地區而有所不同頻段及功能 | ||
4G LTE |
||
| SIM Slot | 2 | |
| LTE Antenna (External Dipole) | 2 | |
| LTE Category (Up to) | CAT.6 | |
| LTE Antenna Peak Gain (dBi) | 3.68 | |
| Max. Rx Link Rate (Mbps) | 300 | |
| Max. Tx Link Rate (Mbps) | 50 | |
| FDD Band |
1(2100MHz)
3(1800MHz)
7(2600MHz)
8(900MHz)
28(700MHz)
|
|
| *因應國籍地區而有所不同頻段及功能 | ||
Internet Connection |
||
| IPv4 |
PPPoE
DHCP
Static IP
|
|
| IPv6 |
PPP
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel
|
|
| 802.1p/q Multi-VLAN Tagging | ||
| Failover | ||
| Connection Detection | ARP, Ping | |
| WAN Data Budget | ||
| Dynamic DNS | ||
| DrayDDNS | ||
LAN |
||
| Fixed LAN (RJ-45, GbE) | 4 | |
| LAN Subnet | 4 | |
| VLAN |
802.1q Tag-based VLAN
|
|
| Max. Number of VLAN | 8 | |
| DHCP Server |
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
|
|
| Wired 802.1x Authentication | ||
| Port Mirroring | ||
| Local DNS Server | ||
| Conditional DNS Forwarding | ||
| Hotspot Web Portal (Profile No.) | 2 | |
| Hotspot Authentication |
Click-Through
Social Login
SMS PIN
RADIUS
External Portal Server
|
|
WLAN |
||
| 2.4GHz WLAN | 802.11ax 2x2 MIMO | |
| 5GHz WLAN | 802.11ax 3x3 MU-MIMO | |
| WiFi Antenna (External) | 2 | |
| WiFi Antenna (Internal) | 1 | |
| 2.4GHz Antenna Gain (dBi) | 2.1 | |
| 5GHz Antenna Gain (dBi) | 2.8 | |
| 2.4GHz Max. Link Rate (Mbps) | 574 | |
| 5GHz Max. Link Rate (Mbps) | 2402 | |
| Max. Number of SSIDs (per band) | 8(4) | |
| Security Mode |
OWE
WEP
WPA
WPA2
WPA2/WPA
WPA3
WPA3/WPA2
|
|
| Authentication | Pre-Shared Key | |
| WiFi 6 | ||
| OFDMA | ||
| Roaming |
Assisted Roaming
|
|
| WPS | WPS Button, PIN Code | |
| WDS | Repeater | |
| Access Control |
Access List
Client Isolation
Hide SSID
WLAN Scheduling
|
|
| AirTime Fairness | ||
| Band Steering | ||
| WMM | ||
| Mesh (5GHz Only) | Root | |
| *因應國籍地區而有所不同頻段及功能 | ||
Networking |
||
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
BGP
|
|
| Policy-based Routing |
Protocol
IP Address
Port
|
|
| DNS Security (DNSSEC) | ||
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
|
| Local RADIUS server | ||
Bandwidth Management |
||
| Traffic Shaping Policy | ||
| IP-based Bandwidth Limit | ||
| IP-based Session Limit | ||
| QoS (Quality of Service) |
IP Address
Port
Application
|
|
| APP QoS | ||
| Default Policy | ||
| VoIP Prioritization | ||
NAT |
||
| Port Forwarding | ||
| DMZ Host | ||
| Port Trigger | ||
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 | |
| UPnP | ||
Management |
||
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
|
|
| Config Backup/Restore | ||
| Firmware Upgrade | WUI, TFTP, TR-069 | |
| Role-based Privilege | ||
| Access Control | Access List, Brute Force Protection | |
| Notification Alert | SMS, E-mail | |
| SNMP | v1, v2c, v3 | |
| Syslog | ||
| Virtual AP Controller (Device up to) | 20 | |
| Mesh (Number of manageable APs) | 7 | |
| Virtual Switch Controller | 5 | |
| VigorACS Management (Since f/w) | V5.3.1 | |
Security |
||
| URL/IP Reputation | ||
| Firewall Filter | IP, Content, Traffic | |
| Port Knocking | ||
| Defense Setup | ARP Spoofing, IP Spoofing | |
| MAC Filtering Profile | ||
| IPv6 Address Security | ||
IAM |
||
| Users & Groups | ||
| Access Policies | ||
| Group Policies | ||
| Conditional Access Policy | ||
| Resources | ||
| Account Status | ||
| Backup and Restore | ||
VPN |
||
| Site-to-Site VPN | ||
| Teleworker VPN | ||
| EasyVPN | ||
| Protocols |
IPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
L2TP over IPsec
|
|
| Max. VPN Tunnels | 16 | |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 370 | |
| Wireguard VPN Throughput (single-directional) (Mbps) | 50 | |
| User Authentication |
Local
RADIUS
TACACS+
mOTP
TOTP
|
|
| IKE Authentication | Pre-Shared Key, X.509 | |
| IPsec Authentication | SHA-1, SHA-256 | |
| Encryption |
DES
3DES
AES
|
|
| Single-Armed VPN | ||
| NAT-Traversal (NAT-T) | ||
| VPN Matcher | ||
| VPN Connection Status | ||
| Backup & Restore | ||
Monitoring |
||
| Clients List | ||
| Log Center | ||
| Wireless Information | ||
| WAN | ||
| ARP Table | ||
| Route Table | ||
| DHCP Table | ||
| IPv6 TSPC Status | ||
| IPv6 Neighbor Table | ||
| LLDP Neighbors | ||
| DNS Cache Table | ||
| Cellular WAN Status | ||
| Remote DSL Status | ||
| PPPoE Pass-Through | ||
| Session Table | ||
| Running Table | ||
Physical |
||
| Power Input | DC 12V @ 1.4A | |
| Max. Power Consumption (watts) | 16.2 | |
| Dimension (mm) | 207 x 131 x 42 | |
| Operating Temperature | 0 to 45°C | |
| Storage Temperature | -25 to 70°C | |
| Operating Humidity (non-condensing) | 10 to 90% | |
*: 未來支援
規格如有更改,恕不另行通知。
以上列出的各項效能表現數據皆是最大值,在居易科技內部搭配最佳網路環境下所測得,實際測得的效能表現數據會因為不同的網路環境與運行的服務或軟體而有不同。
